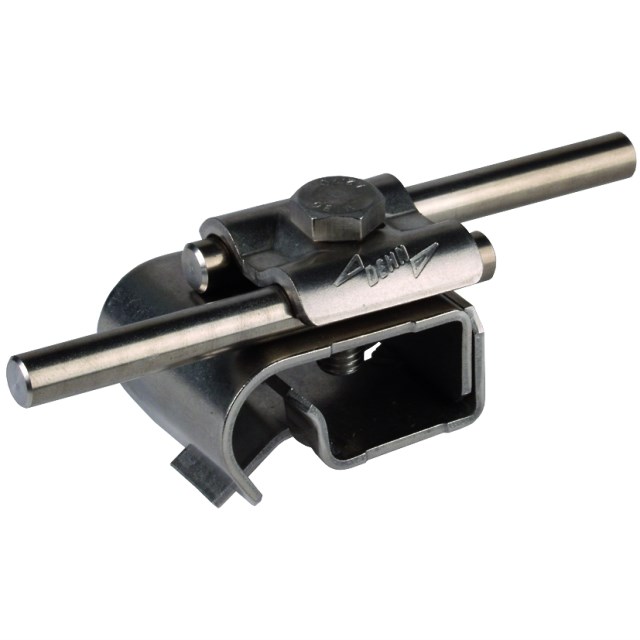

DEHN 339059 Gutter Clamp W/Double Cleat 8-10mm M8 x 20mm M8 x 25mm Screw Stainless Steel

Product Code: 339059

  • M8 screw connection for secure fit
  • Fits 8 mm dia round conductors
  • Handles lightning currents up to 100 kA
  • Made from durable stainless steel
  • Complies with EN 62561-1 standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 40W
Reference No. 339059
Thickness (mm) 2
Suitable For Diameter round conductor 8mm
Weight (kg) 0.14
Width (mm) 40
Class (Lightning Current Carrying Capability) (kA) 50/100
Clamping Range (mm) 16-22
Weight (g) 132
Surface Protection Untreated
Gross Weight (g) 136
Rod Diameter (mm) 8
Clamping Range Rd/Rd (mm) 160
Clamping Range Bead (mm) 16-22
Product Type Gutter Clamp With Double Cleat
Brand DEHN
Clamping Range 8-10 mm
Connection Type M8 x 20 mm, M8 x 25 mm Screw
Connector Type Gutter clamp
Finish Untreated
Lid Screw Type Hexagon screw
Lightning Current Carrying Capability 50 kA, 100 kA
Material Stainless Steel
Screw Size M8
Standards and Approvals EN 62561-1
Suitable For Use With 8 mm Dia Round Conductor
Thickness 2 mm
Weight 136 g
Width 40 mm

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
