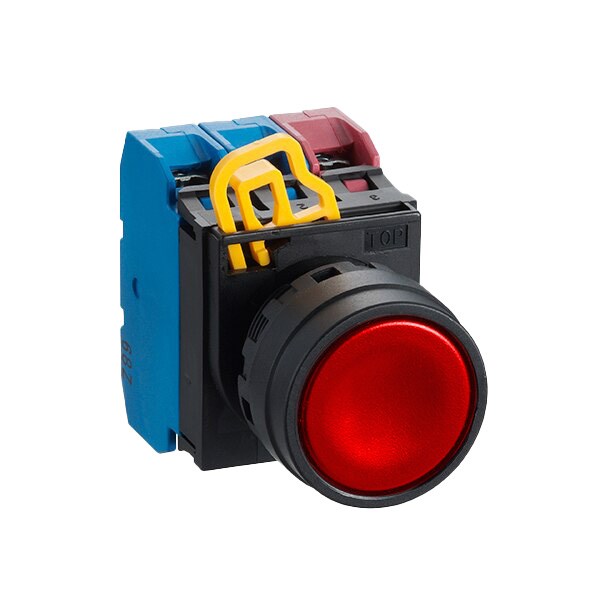

IDECYW1B-M1E01R-HS Non-Illuminated Pushbutton 22mm Flush Momentary Red 1NC

Product Code: YW1B-M1E01R-HS

  • Non-illuminated red pushbutton
  • Flush actuator with 22 mm dia.
  • IP65 front, IP20 terminal protection
  • Rated insulation voltage: 600 V
  • Mechanical life up to 5 million operations
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

No. of Normally-closed Contacts 1
Product Type Pushbutton
Brand IDEC
Series YW
Actuator Type Flush
Bezel Material Plastic
Button Colour Red
Colour Red
Contact Configuration 1NC
Contact Material Silver
Cutout Size 22 mm
Degree of Protection IP65 Front, IP20 Terminal
Depth 56.8 mm
Diameter 22 mm
Function Momentary
Height 41.4 mm
Humidity 45-85%
Illumination Non-Illuminated
Insulation Resistance 100 MOhm
Mechanical Life 5 million Operations Single Contact Block, 1 million Operations Double Contact Block
Mode of Operation Momentary
Operational Temperature -20 to 55 deg C
Rated Continuous Current 10 A
Rated Insulation Voltage 600 V
Shock Resistance 10 g/ms
Standards and Approvals cULus listed, CE Marked, UKCA Certified, CCC Certified
Storage Temperature -40 to 85 deg C
Terminal Type Screw
Vibration Resistance 5-55 Hz
Width 30 mm

Description

The IDEC YW1B-M1E01R-HS is a non-illuminated, momentary pushbutton with a 22mm size and a single normally closed (1NC) contact. It features space-saving 10mm thick contact blocks and a removable operator for easy maintenance. The pushbutton is designed to be compact and lightweight, with a durable metal bezel for robust use in industrial environments.
