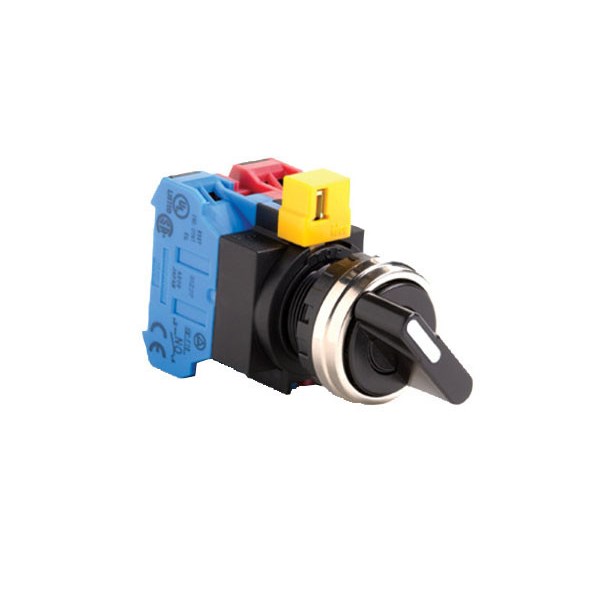

IDEC HW4S-3JTF21N1 Selector Switch 3Position 2NO+1NC Non-Illuminated Maintained Knob Metal Screw Terminal

Product Code: HW4S-3JTF21N1

  • Selector switch with 10 A current rating
  • Dual IP20/IP65 protection for durability
  • Operates in -25 to 60°C temp range
  • Screw terminals for secure connections
  • CE, CSA, UL approved for safety standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

No. of Normally-open Contacts 2
No. of Normally-closed Contacts 1
Product Type Selector Switch
Brand IDEC
Series HW
Bezel Material Metal
Contact Configuration 2NO+1NC
Degree of Protection IP20, IP65
Function Maintained
Illumination Non-Illuminated
Insulation Resistance 50 MOhm
Mounting Hole Diameter 22 mm
Number of Positions 3
Operational Temperature -25 to 60 deg C
Rated Current 10 A
Rated Frequency 50/60 Hz
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 600 V
Standards and Approvals CE, CSA, UL
Switch Type Knob
Terminal Type Screw

Description

The IDEC HW4S-3JTF21N1 is a robust 3-position selector switch from the HW series, featuring a durable metal bezel and a maintained operation. It comes equipped with 2 Normally Open (NO) and 1 Normally Closed (NC) contact configurations for versatile control options. The knob handle design allows for easy operation, making it suitable for a wide range of industrial applications.
