Specifications

Dimensions (mm)	108W x 141H x 69D
Nominal Discharge Current (8/20µs) - In (kA)	80
No. of Phases	3
Nominal Voltage AC (V)	230
Operational Temperature Range (°C)	-40 to 70
Voltage Protection Level - Up (kV)	1.4
Response Time (ns)	100
Backup fuse rating (A)	125
Weight (g)	2000
Maximum Continuous Voltage AC (V)	480
Maximum Discharge Current (8/20µs) (kA)	200
Short Circuit Withstand Level (kA)	50

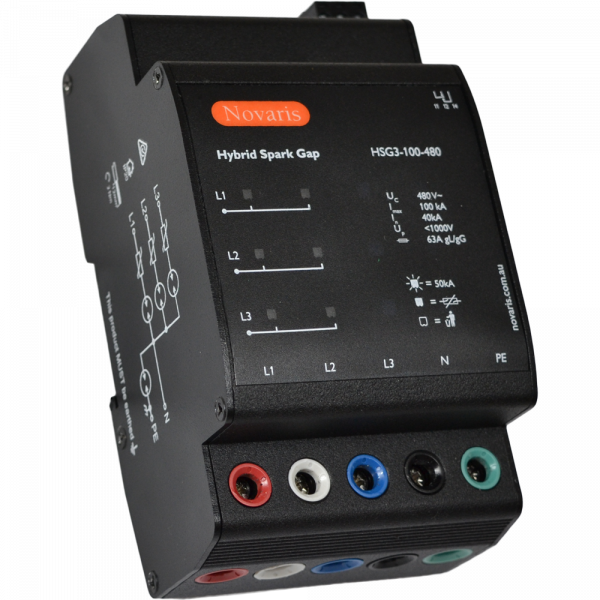

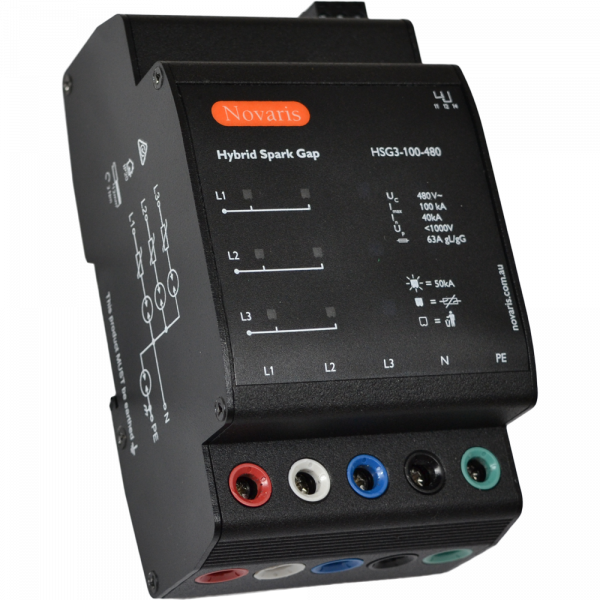

Product Type	Hybrid Spark Gap Arrester
Brand	NOVARIS
Connection Type	Shunt
Contact Configuration	SPDT
Degree of Protection	IP20
Depth	78 mm
Display Type	LED
Fuse Rating	125 A
Height	260 mm
Humidity	5-95%
Lightning Impulse Current	25 kA
Material	Metal
Modes of Protection	L-N, N-PE
Mounting Type	Panel, TS35 DIN
Operational Temperature	-40 to 70 deg C
Phase	3
Rated Current	250 kA
Rated Frequency	50 Hz
Rated Voltage	230 V
Response Time	<100 ns
Standards and Approvals	EC 61643-11 Class I, AS/NZS 1768 Category C, IEEE C62.41 Category C, IEC 1000-4-5, UL1449 Fourth Edition
Weight	5 kg
Width	240 mm
