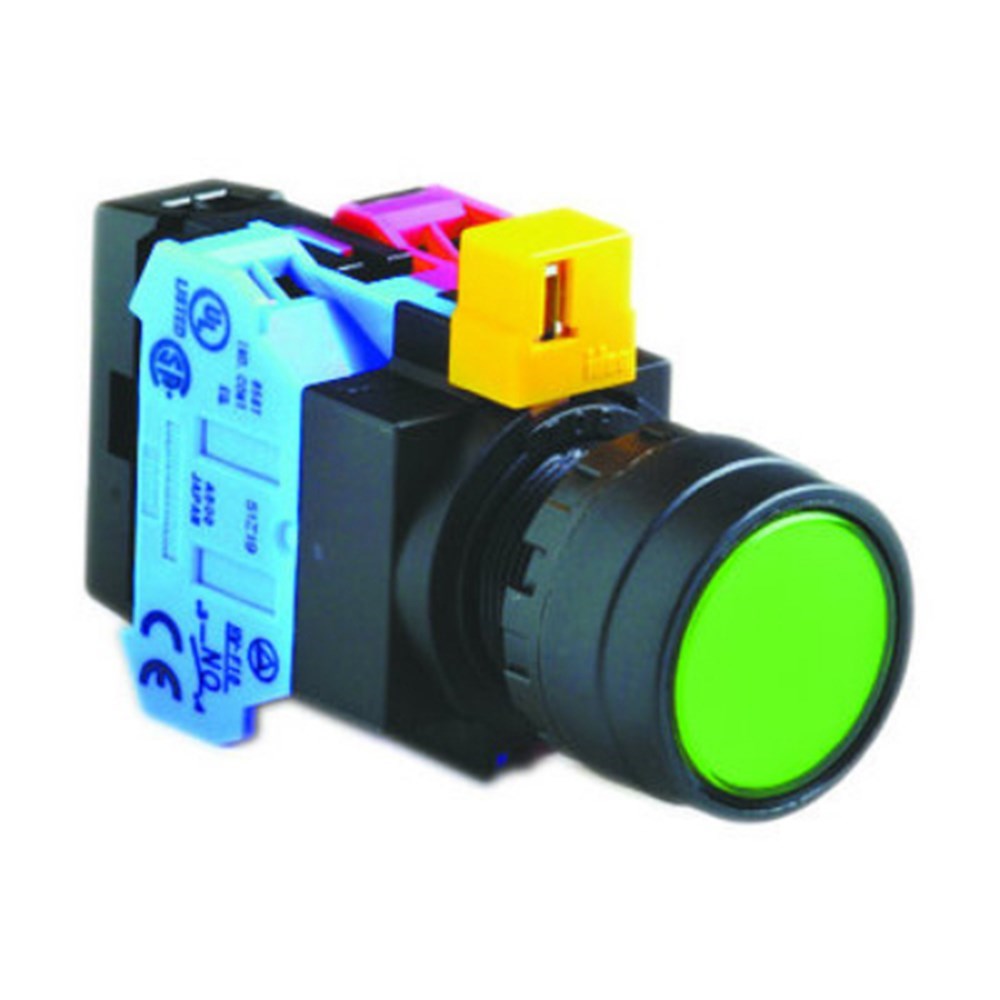

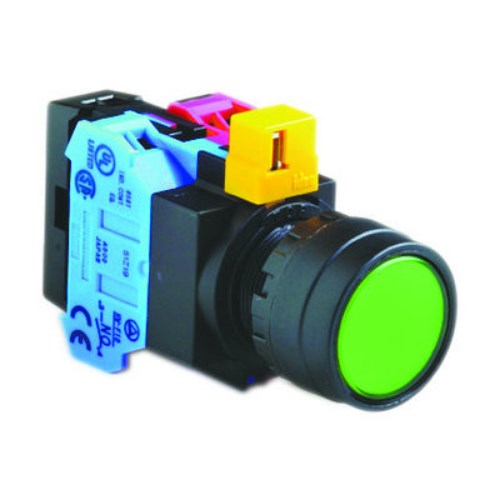

IDECHW1L-M1F11G-K Illuminated Pushbutton Kit 22mm Flush Momentary Green 6VAC/DC 1NO+1NC

Product Code: HW1L-M1F11G-K

  • Illuminated pushbutton with flush actuator
  • Durable IP65 front protection rating
  • Operates in -25 to 60°C temperature range
  • Long mechanical life of 5 million ops
  • UL, CE, CSA certified for reliability
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 1NO+1NC
Insulation Resistance (MO) 100
Operational Temperature Range (°C) -25 to +50
Rated Continuous Current (A) Contact Rating - 10
Pollution Degree 3
Rated Frequency (Hz) 50/60
Rated Insulation Voltage (V) Contact Rating - 600
Rated Impulse Withstand Voltage (kV) 2.5
Mounting Hole Diameter (mm) 22
Tightening Torque (Nm) Locking Ring - 2.0
Lamp Not Included
Product Type Pushbutton Kit
Brand IDEC
Series HW
Actuator Type Flush
Bezel Colour Black
Bezel Material Plastic
Bezel Shape Round
Contact Configuration 1NO+1NC
Contact Material Silver
Cutout Size 22 mm
Degree of Protection IP65 Front, IP20 Terminal
Diameter 22 mm
Function Momentary
Illumination Illuminated
Insulation Resistance 100 MOhm
Lamp Colour Green
Lamp Type Without Lamp
LED Colour Green
Mechanical Life 5 million Operations
Mode of Operation Momentary
Operational Temperature -25 to 60 deg C
Rated Insulation Voltage 600 V
Rated Thermal Current 10 A
Rated Voltage 6 VAC/DC
Standards and Approvals UL listed, CE marked, ULKA approved, CSA certified
Terminal Type Screw

Description

The IDEC HW1L-M1F11G-K is an illuminated pushbutton with a sleek green, flush design suitable for full voltage applications. It features momentary action and includes 1 Normally Open (NO) and 1 Normally Closed (NC) contact for versatile use. The unit is also designed with tamperproof features to enhance security.
