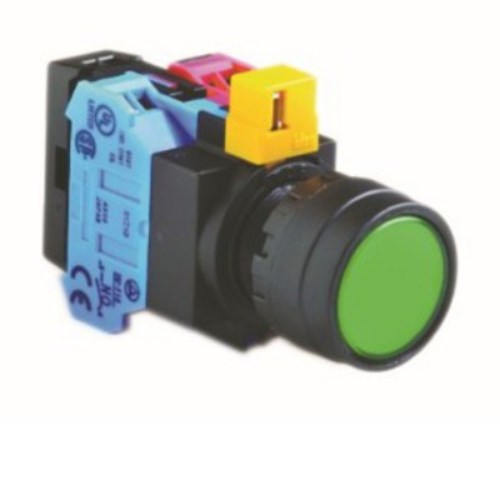

IDECHW1L-M1F11M4G-K Illuminated Pushbutton Kit Transformer 22mm Flush Momentary Green 240/6VAC/DC 1NO+1NC

Product Code: HW1L-M1F11M4G-K

  • Illuminated pushbutton with green actuator
  • Rated for 240/6 VAC/DC operation
  • IP65 front protection, IP20 terminal safety
  • Durable with 5 million mechanical operations
  • Compliant with UL, CE, CSA standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 1NO+1NC
Insulation Resistance (MO) 100
Operational Temperature Range (°C) -25 to +50
Rated Continuous Current (A) Contact Rating - 10
Pollution Degree 3
Rated Frequency (Hz) 50/60
Rated Insulation Voltage (V) Contact Rating - 600
Rated Impulse Withstand Voltage (kV) 2.5
Mounting Hole Diameter (mm) 22
Tightening Torque (Nm) Locking Ring - 2.0
Lamp Not Included
Product Type Pushbutton Kit
Brand IDEC
Series HW
Actuator Type Flush
Bezel Colour Black
Bezel Material Plastic
Bezel Shape Round
Contact Configuration 1NO+1NC
Contact Material Silver
Cutout Size 22 mm
Degree of Protection IP65 Front, IP20 Terminal
Diameter 22 mm
Function Momentary
Illumination Illuminated
Illumination Circuit Transformer
Insulation Resistance 100 MOhm
Lamp Colour Green
Lamp Type Without Lamp
LED Colour Green
Mechanical Life 5 million Operations
Mode of Operation Momentary
Operational Temperature -25 to 60 deg C
Rated Insulation Voltage 600 V
Rated Thermal Current 10 A
Rated Voltage 240/6 VAC/DC
Standards and Approvals UL listed, CE marked, ULKA approved, CSA certified
Terminal Type Screw

Description

The IDEC HW1L-M1F11M4G-K is an illuminated pushbutton featuring a green flush design for clear visibility. It operates with a momentary action and includes a transformer suitable for 240/6V applications. This pushbutton ensures secure operation with its tamperproof construction and offers versatile contact configurations with one normally open (NO) and one normally closed (NC) contact. Designed for ease of use and reliability, it's an ideal choice for various control panel applications.
