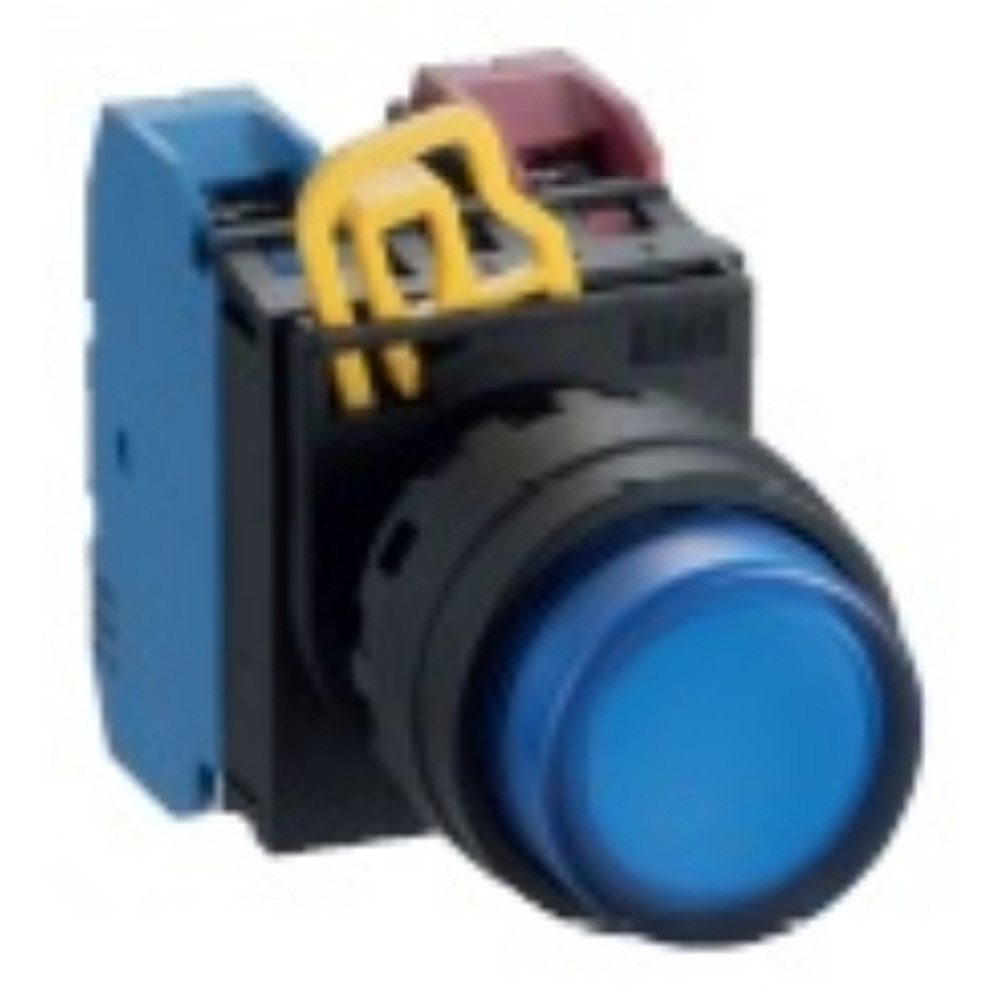

IDECYW1L-M2E11Q0S Illuminated Pushbutton 22mm Extended Momentary Blue 250VAC/DC 1NO+1NC

Product Code: YW1L-M2E11Q0S

  • Illuminated momentary pushbutton
  • IP65 front protection rating
  • 5 million operations mechanical life
  • Operates in -20 to 55°C temperature range
  • CE, UKCA, CCC certified
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 30W x 41.4H x 64.8D
Operating Voltage DC (V) 250
Operating Voltage AC (V) 250
No. of Normally-open Contacts 1
No. of Normally-closed Contacts 1
Product Type Pushbutton
Brand IDEC
Series YW
Actuator Type Extended
Bezel Material Plastic
Colour Blue
Contact Configuration 1NO+1NC
Contact Material Silver
Cutout Size 22 mm
Degree of Protection IP65 Front, IP20 Terminal
Depth 64.8 mm
Diameter 22 mm
Function Momentary
Height 41.4 mm
Humidity 45-85%
Illumination Illuminated
Insulation Resistance 100 MOhm
Lamp Colour Blue
Lamp Type Without Lamp
Mechanical Life 5 million Operations Single Contact Block, 1 million Operations Double Contact Block
Model Momentary Extended - Without Lamp
Operational Temperature -20 to 55 deg C
Rated Continuous Current 10 A
Rated Insulation Voltage 600 V
Rated Voltage 250 VAC/DC
Shock Resistance 10 g/ms
Standards and Approvals cULus listed, CE Marked, UKCA Certified, CCC Certified
Storage Temperature -40 to 85 deg C
Terminal Type Screw
Vibration Resistance 5-55 Hz
Width 30 mm

Description

The IDEC YW1L-M2E11Q0S is an illuminated pushbutton featuring a momentary action with extended blue operator for clear visibility. It includes 1 Normally Open (NO) and 1 Normally Closed (NC) contact, suitable for various control applications. The space-efficient design boasts a slim 10mm contact block, while the metal bezel ensures durability. Its compact and lightweight construction simplifies installation, and the removable operator enhances maintenance convenience. This pushbutton is part of the versatile YW series, designed to streamline setup and operation.

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
