IDECHW2L-M1F10A-K Illuminated Pushbutton Kit 22mm Flush Momentary Amber 1NO

Product Code: HW2L-M1F10A-K

  • Illuminated pushbutton with flush actuator
  • IP65 front protection ensures durability
  • Operates within -25 to 60°C temperature range
  • UL, CE, CSA certified for safety compliance
  • 5 million operations mechanical life
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

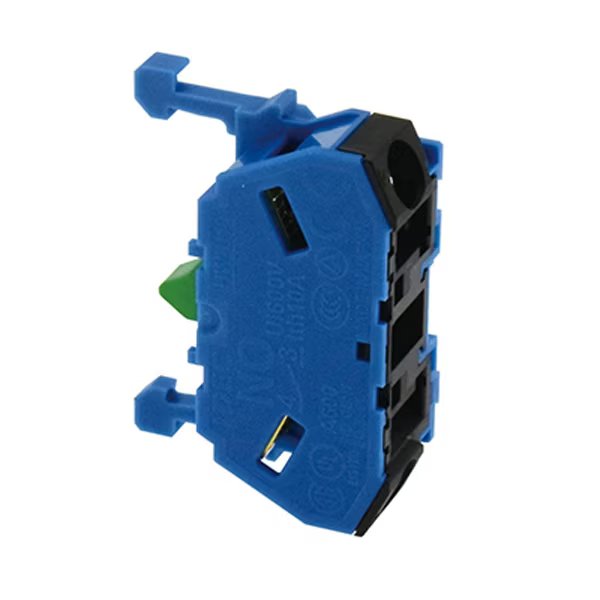

Components Lens Operator Ring Lamp Holder Full Voltage Adaptor 1 NO Contact Block Contact Block Mounting Adaptor Safety Lever Lock
No. of Normally-open Contacts 1
Terminal Shape Screw Terminal
Product Type Pushbutton Kit
Brand IDEC
Series HW
Actuator Type Flush
Bezel Colour Black
Bezel Material Plastic
Bezel Shape Square
Contact Configuration 1NO
Contact Material Silver
Cutout Size 22 mm
Degree of Protection IP65 Front, IP20 Terminal
Diameter 22 mm
Function Momentary
Illumination Illuminated
Illumination Colour Amber
Insulation Resistance 100 MOhm
Lamp Colour Amber
Lamp Type Without Lamp
Mechanical Life 5 million Operations
Operational Temperature -25 to 60 deg C
Rated Frequency 50/60 Hz
Rated Insulation Voltage 600 V
Rated Thermal Current 10 A
Standards and Approvals UL listed, CE marked, ULKA approved, CSA certified
Terminal Type Screw

Description

The IDEC HW2L-M1F10A-K is an illuminated pushbutton designed for momentary operation. This square flush amber button operates at full voltage and features a durable plastic bezel. It includes 1 Normally Open (NO) contact, providing reliable switching for various applications. Ideal for control panels requiring clear and visible actuation feedback, this pushbutton ensures efficient operation in industrial settings.
