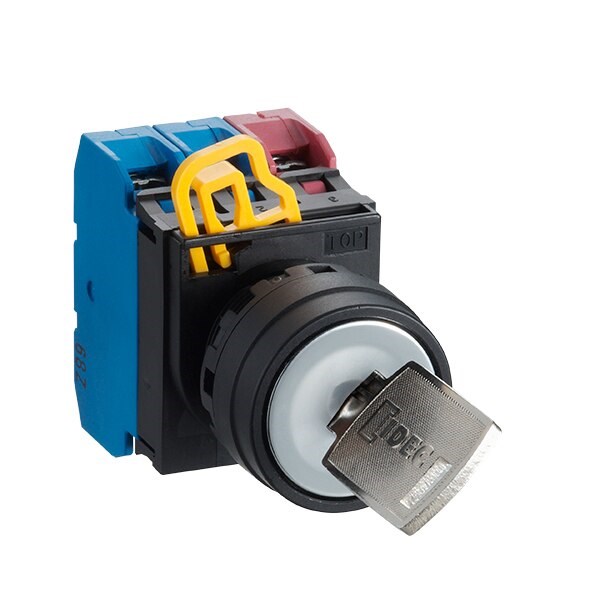

IDEC YW1K-2AE30 Selector Switch 2Position 3NO Left Key Round Plastic M3.5 Screw Terminal 30mm W 41.4mm H 69.8mm D

Product Code: YW1K-2AE30

  • Key selector switch with 3NO contact config
  • Rated current of 10 A, freq. 50/60 Hz
  • Operates in -20 to 55°C range
  • IP20/IP65 protection for durability
  • Fits 22 mm mounting hole
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

No. of Normally-open Contacts 3
Product Type Selector Switch
Brand IDEC
Series YW
Actuator Type Key
Bezel Material Plastic
Bezel Shape Round
Contact Configuration 3NO
Degree of Protection IP20, IP65
Depth 69.8 mm
Height 41.4 mm
Insulation Resistance 100 MOhm
Mounting Hole Diameter 22 mm
Number of Positions 2
Operation Position Left
Operational Temperature -20 to 55 deg C
Rated Current 10 A
Rated Frequency 50/60 Hz
Rated Insulation Voltage 600 V
Standards and Approvals CSA C22.2 No.14, GB/TI4048.5, IEC60947-1, IEC60947-5-1, UL508
Terminal Type M3.5 Screw
Tightening Torque 1 N-m
Width 30 mm

Description

The IDEC YW1K-2AE30 Key Selector Switch is a compact, lightweight solution designed for efficient use of space with its 10mm thick contact blocks. It features a removable operator for flexibility and ease of maintenance. The durable metal bezel enhances the switch's robustness, while the unibody pilot lights and key selector switches ensure a unified design. Installation and removal are simplified thanks to the separate contact block design, streamlining the process in various industrial settings.
