Specifications

Contacts	2CO
Operational Temperature Range (°C)	-25 to +60
Pollution Degree	3
Rated Frequency (Hz)	15-400
Rated Impulse Withstand Voltage (kV)	6
Rated Control Supply Voltage AC/DC (V)	24 - 240
System Leakage Capacitance (µF)	20
Measuring Range (Kilo Ohm)	1 - 100
Product Type	Insulation Monitoring Relay
Brand	ABB
Contact Configuration	1CO SPDT
Contact Form	1CO SPDT
Degree of Pollution	IP3
Degree of Protection	IP20, IP50
Electrical Durability	100000 Operations
Function	Unearthed AC Systems, Unearthed DC Systems, Unearthed Mixed AC/DC Systems, Up to 250 VAC, Up to 300 VDC
Height	85.6 mm
LED Colour	U: Green, F: Red, R: Yellow
Measuring Range	1-100 kOhm
Mechanical Durability	30000000 Operations
Mounting Type	35 x 15 mm DIN Rail, 35 x 7.5 mm DIN Rail
Operational Temperature	-25 to 60 deg C
Output Type	1CO SPDT
Rated Current	4 A
Rated Frequency	15-400 Hz
Rated Voltage	24-240 VAC/VDC
Standards and Approvals	CAN/CSA C22.2 No.14, IEC/EN 63000, IEC/EN 61326-2-4, IEC/EN 61557-1, IEC/EN 61557-8, UL 508
Terminal Type	Screw
Weight	0.148 kg
Width	22.5 mm

Description

The Insulation Resistance Monitoring Relay is designed to monitor insulation resistance in unearthed AC, DC, or AC/DC systems. It can handle voltages up to 400V AC and 600V DC. The measuring range for insulation resistance is 1-200 kO, and it has a system leakage capacitance of 20 mF. The relay features 2 changeover contacts with SPDT configuration and a supply voltage range of 24-240V AC/DC. It comes in a compact form factor with a width of 22.5mm per module.

Documents

IPD Product Catalogue

IPD Product Catalogue V17

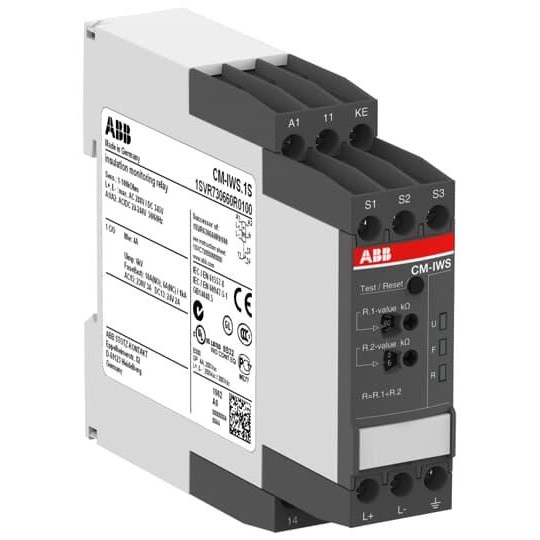

ABB CM-IWS.1S Insulation Monitoring Relay 1-100kOhm 24-240VAC/DC 1CO SPDT 4A

Product Code: CM-IWS.1S
