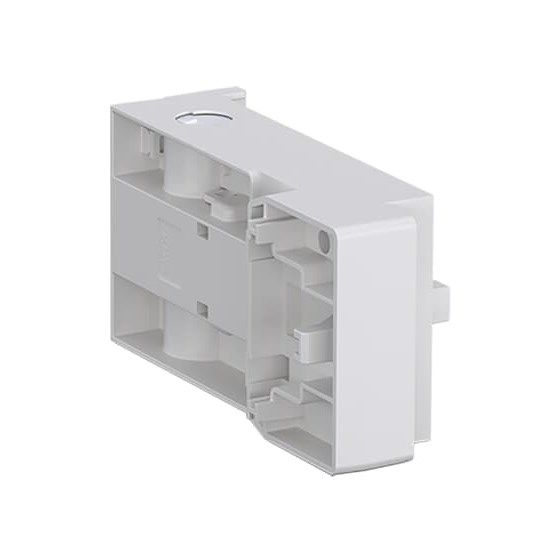

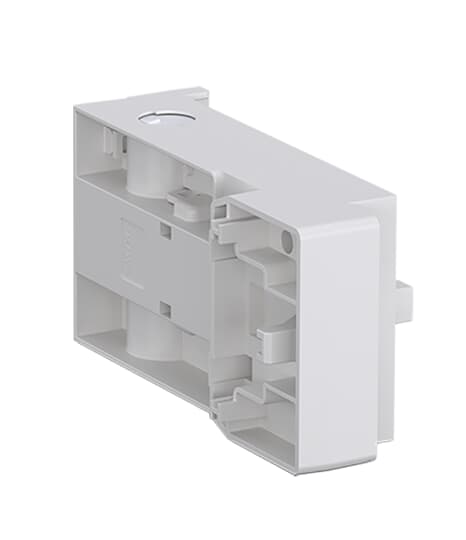

ABB VM370/400 Mechanical Interlock

Product Code: VM370/400

  • Screw terminal for secure connections
  • Side mounting for easy installation
  • Compact dimensions: 39.7mm W x 139.7mm H x 70mm D
  • Lightweight design at just 0.19 kg
  • Compatible with AF265-AF370, AF400 or AF460
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 39.7W x 139.7H x 70D
Suitable For AF265 - AF370 with AF400 or AF460
Weight (kg) 0.19
Product Type Mechanical Interlock
Brand ABB
Depth 70 mm
Height 139.7 mm
Mounting Position Side
Mounting Type Side
Suitable For Use With AF265-AF370 with AF400 or AF460
Terminal Type Screw
Weight 0.19 kg
Width 39.7 mm

Description

The VM370/400H mechanical interlock units is designed for interlocking AF265/AF305/AF370/AX260/AX300/AX370 with an AF400 or AF460 contactor. When mounted between the two contactors, the VM mechanical interlock unit only allows one contactor to be closed at any given time, mechanically preventing both circuits to be closed simultaneously.
