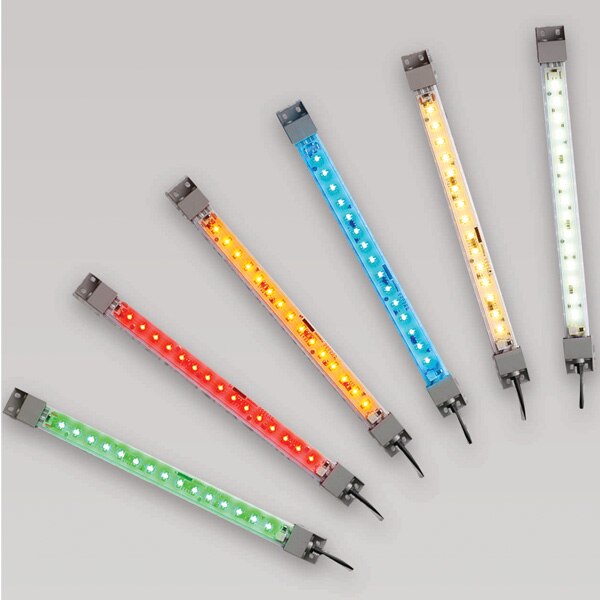

IDEC LF1B-NC4P2SHY21M Illumination Unit White IP65 330mm D 1m L Cable 24V

Product Code: LF1B-NC4P2SHY21M

  • Compact 330 mm depth for versatile installation
  • Energy-efficient with 2.9 W power consumption
  • IP65 rating for robust dust and water protection
  • Operates in extreme temps from -30 to 55°C
  • CE, cULus, UL, CSA certified for safety compliance
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Cable Length (m) 1
Dimensions (mm) 27.5W x 16H x 330D
Operational Temperature Range (°C) -30 to 55
Power Consumption (W) 2.9
Rated Operational Voltage (V) 24
Weight (g) 165
Operating Humidity 45 to 85%
Resistance to Vibrations 5 to 55Hz
Resistance to Shock (m/s²) 1000
Voltage Range (DC) 21.6 to 26.4
Product Type Illumination Unit
Brand IDEC
Series LF1B-N
Cable Length 1 m
Cover Colour White
Degree of Protection IP65
Depth 330 mm
Humidity 45-85%
Illumination Colour Yellow
Operational Temperature -30 to 55 deg C
Rated Current 210 mA
Rated Power 2.9 W
Rated Voltage 24 V
Standards and Approvals CE, cULus, UL2108, UL8750, CSA C22.2 No. 250.0 EN55015, FCC Part 15/Class B, EN61547
Weight 165 g

Description

The IDEC LF1B-NC4P2SHY21M is a durable light industrial LED strip with a yellow and white cover, measuring 330mm in length. It provides efficient illumination for a variety of industrial applications.
