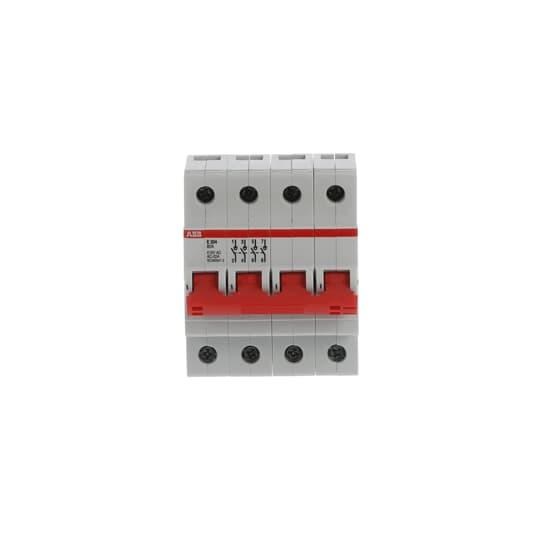

ABB E20480RD Switch Disconnector IP10 80A 4-P 230/400VAC DIN Rail Mount

Product Code: E20480RD

  • 80 A switch disconnector with 4 poles
  • Complies with AS/NZS 60947-3 standard
  • Suitable for DIN rail mounting
  • Rated voltage: 230/400 VAC, frequency: 50/60 Hz
  • Compact size: 70x85x69 mm (WxHxD)
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Busbar Cross Section (mm²) ≥ 16
Dimensions (mm) 85H x 69D x 70W
No. of Poles 4P
Pole Width (mm) 17.5
Power Loss (W) 2.6/Pole
Rated Conditional Short-Circuit Current - Inc (kA) 25
Rated Current (A) 80
Rated Frequency (Hz) 50/60
Rated Impulse Withstand Voltage (kV) 4
Rated Operational Voltage DC (V) 60
Rated Operational Voltage AC (V) 230/400
Poles 4P
Current Rating (A) 80
Family E200
AC Voltage (V) 230/400
DC Voltage (V) 60
Inc-Rated Conditional Short Circuit Capacity (kA) 25
Impulse Withstand Voltage (kV/1.2µS) 4
Minimum Operational Voltage AC (V) 12
Minimum Operational Voltage DC (V) 12
Product Type Switch Disconnector
Brand ABB
Series E200
Application Domestic
Bulbar Cross Section >=16 sq-mm
Cable Cross Section 25 sq-mm Top, 25 sq-mm Bottom
Colour RAL 7035 Light Grey
Degree of Protection IP10
Depth 69 mm
Height 85 mm
Housing Material Grey, RAL 7035
Mounting Type DIN Rail
Number of Poles 4
Pole Width 17.5 mm
Power Loss 2.6 W
Rated Current 80 A
Rated Frequency 50/60 Hz
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 440 V
Rated Voltage 230/400 VAC
Short Circuit Capacity 25 kA
Standards and Approvals AS/NZS 60947-3
Width 70 mm

Description

The ABB Switch Disconnector is a 4-pole device with a current rating of 80A. It operates at voltages of 230/400VAC and is designed for load break switching and isolation. This switch disconnector is part of ABB's domestic range, making it suitable for residential applications.

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
