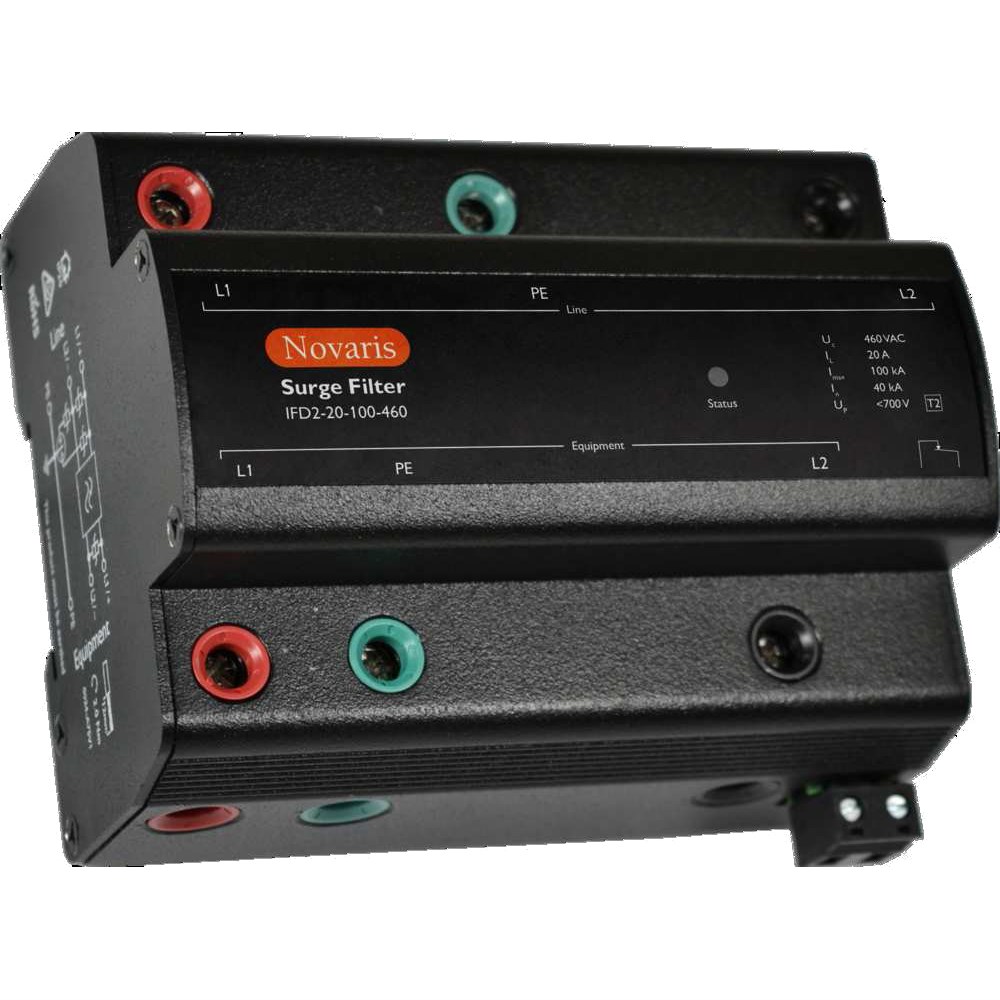

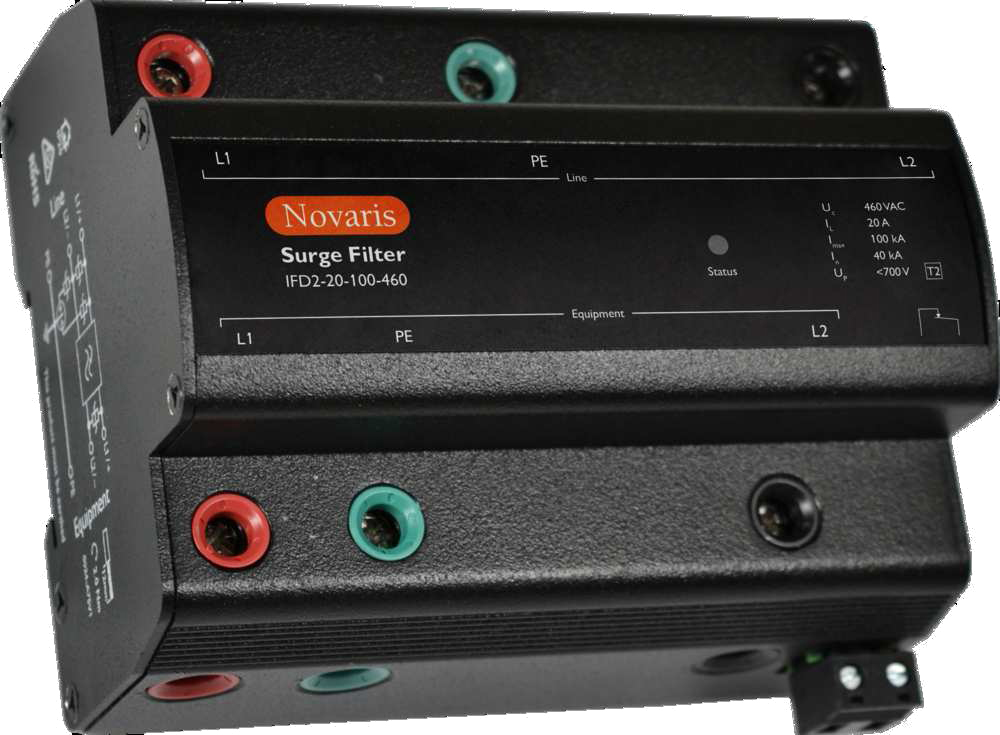

Novaris IFD2-20-100-460 Surge Filter 2 PH 20A 400VAC TS35 Aluminium IP20

Product Code: IFD2-20-100-460

  • Surge filter for 400 VAC, 20 A systems
  • LED display for power and thermal alerts
  • IP20 protection, TS35 DIN rail mountable
  • Fast response time of <100 ns
  • Aluminium construction, compact size
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 119W x 69H x 95D
Enclosure Material Aluminium
Weight (g) 850
Product Type Surge Filter
Brand NOVARIS
Colour Black
Degree of Protection IP20
Depth 95 mm
Display Type LED Power and Thermal Failure
Enclosure Coating Material Black powdercoat
Fuse Rating 20 A
Height 69 mm
Humidity 5-95%
Material Aluminium
Modes of Protection L-L, L-PE
Mounting Type TS35 DIN Rail
Number of Ports 2
Operational Temperature -40 to 70 deg C
Phase 2
Rated Current 20 A
Rated Voltage 400 VAC
Response Time <100 ns
Tightening Torque 0.5 N-m, 2 N-m
Voltage Protection Level <700 V
Weight 850 g
Width 119 mm
