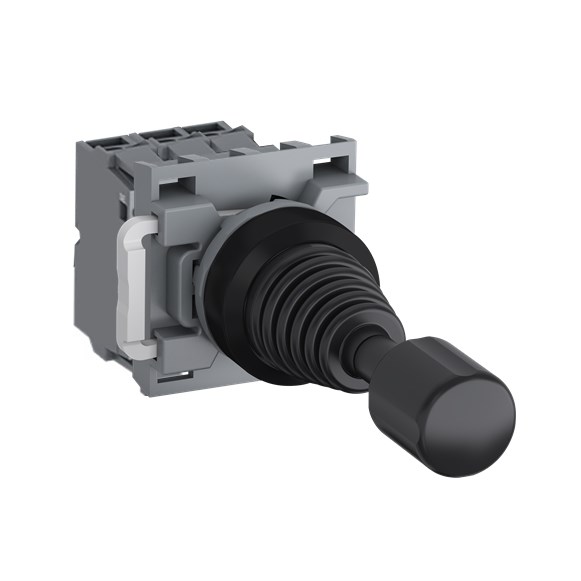

ABB MPJLA412 Illuminated Joystick Operator Switch 24VAC/VDC 22mm dia Mounting Hole 1NO+2NC

Product Code: MPJLA412

  • Rated for 24 VAC/VDC, 50/60 Hz operation
  • Wide temp range: -25 to 70°C operational
  • High protection: IP20, IP66, IP67, IP69K
  • Integrated LED with clear illumination
  • NEMA ratings: 1, 12, 13, 3R, 4, 4x
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 1NO+2NC
No. of Positions 4
Sub-Function 4-Position
Actuating Direction Not Applicable
Bezel Material Plastic
Product Type Joystick Operator Switch
Brand ABB
Actuator Type Pilot Light Head
Connecting Capacity 1 x 0.75-2.5 sq-mm Flexible, 2 x 0.75-2.5 sq-mm Flexible, 1 x 0.75-2.5 sq-mm Solid, 2 x 0.75-2.5 sq-mm Solid
Connection Type Screw Clamp
Degree of Pollution IP3
Degree of Protection IP20, IP66, IP67, IP69K
Function Maintained
Illumination Illuminated
Lamp Colour Clear
Lamp Type Integrated LED
Mode of Operation Maintained
NEMA Rating NEMA 1, 12, 13, 3R, 4, 4x
Operational Temperature -25 to 70 deg C
Rated Frequency 50/60 Hz
Rated Voltage 24 VAC/VDC
Storage Temperature -40 to 85 deg C
Terminal Type Screw
Tightening Torque 0.9 N-m
Weight 0.018 kg
Wire Stripping Length 8 mm
