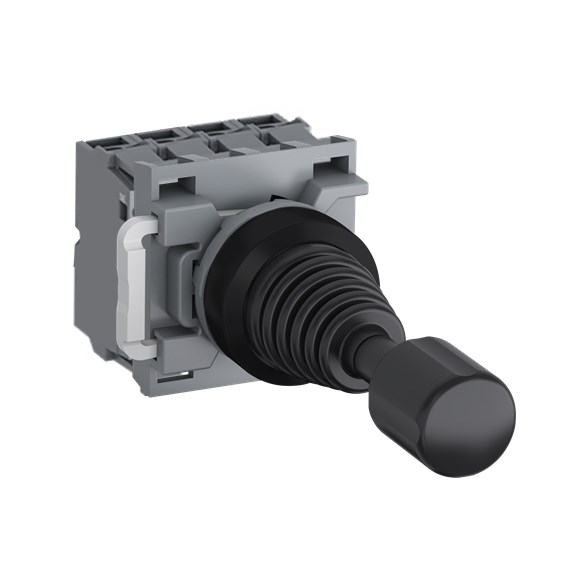

ABB MPJLO413 Illuminated Joystick Operator Switch 110-130VDC 22mm dia Mounting Hole 1NO+3NC

Product Code: MPJLO413

  • Illuminated selector switch for clear visibility
  • Wide voltage range: 110-130 VDC
  • High protection: IP20, IP66, IP67, IP69K
  • Durable in extreme temps: -25 to 70°C
  • Screw clamp connection for secure fit
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 1NO+3NC
No. of Positions 4
Sub-Function 4-Position
Actuating Direction Not Applicable
Bezel Material Plastic
Product Type Joystick Operator Switch
Brand ABB
Actuator Type Pilot Light Head
Connecting Capacity 1 x 0.75-2.5 sq-mm Flexible, 2 x 0.75-2.5 sq-mm Flexible, 1 x 0.75-2.5 sq-mm Solid, 2 x 0.75-2.5 sq-mm Solid
Connection Type Screw Clamp
Degree of Pollution IP3
Degree of Protection IP20, IP66, IP67, IP69K
Function Momentary
Illumination Illuminated
Lamp Colour Clear
Lamp Type Integrated LED
Mode of Operation Momentary
NEMA Rating NEMA 1, 12, 13, 3R, 4, 4x
Operational Temperature -25 to 70 deg C
Rated Voltage 110-130 VDC
Storage Temperature -40 to 85 deg C
Terminal Type Screw
Tightening Torque 0.9 N-m
Weight 0.018 kg
Wire Stripping Length 8 mm
