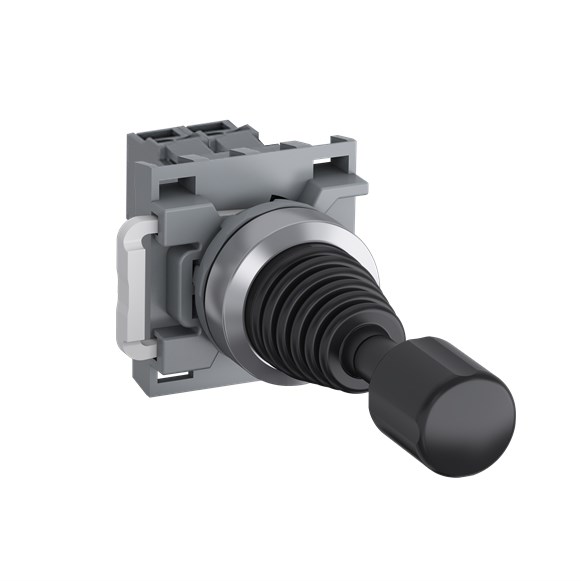

ABB MPJA2H11 Horizontal Joystick Operator Switch Maintained 22mm dia Mounting Hole 1NO+1NC

Product Code: MPJA2H11

  • Selector switch with 30 mm width
  • Operates from -25 to 70°C
  • IP20, IP66, IP67, IP69K protection ratings
  • Screw terminals with 0.8 N-m torque
  • Contact config: 1NO+1NC
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 1NO + 1NC
Latching kit Not Included
No. of Positions 2
Sub-Function 2-Position
Actuating Direction Horizontal
Bezel Material Plastic
Product Type Horizontal Joystick Operator Switch
Brand ABB
Actuator Type Maintained
Contact Configuration 1NO+1NC
Degree of Pollution IP3
Degree of Protection IP20, IP66, IP67, IP69K
Function Maintained
Mode of Operation Maintained
Operational Temperature -25 to 70 deg C
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 300 V
Storage Temperature -40 to 85 deg C
Terminal Type Screw
Tightening Torque 0.8 N-m
Width 30 mm

Description

The Joystick Horizontal without Latching Kit is a 2-position maintained switch made from modular plastic. It features 1 normally open (NO) and 1 normally closed (NC) contact. This joystick is designed for horizontal movement.

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
