Specifications

Contacts	2NO
No. of Positions	2
Sub-Function	2-Position
Actuating Direction	Horizontal
Bezel Material	Plastic

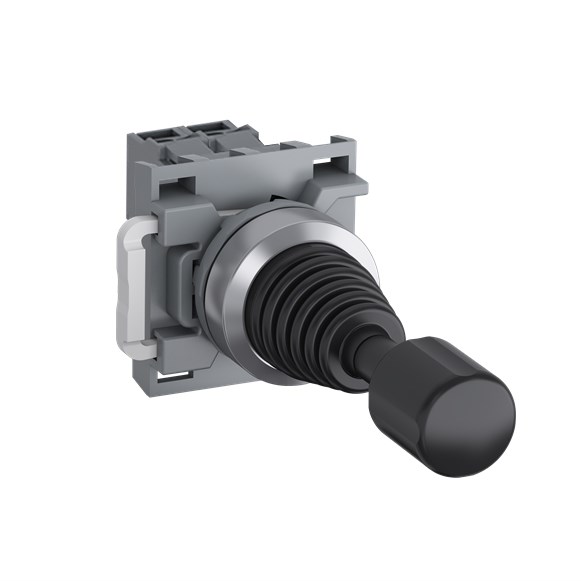

Product Type	Horizontal Joystick Operator Switch
Brand	ABB
Actuator Type	Maintained
Colour	Black
Contact Configuration	1NO+1NC
Degree of Pollution	IP3
Degree of Protection	IP20, IP66, IP67, IP69K
Function	Maintained
Mode of Operation	Maintained
Operational Temperature	-25 to 70 deg C
Rated Impulse Withstand Voltage	6 kV
Rated Insulation Voltage	300 V
Storage Temperature	-40 to 85 deg C
Terminal Type	Screw
Tightening Torque	0.8 N-m
Width	40 mm
