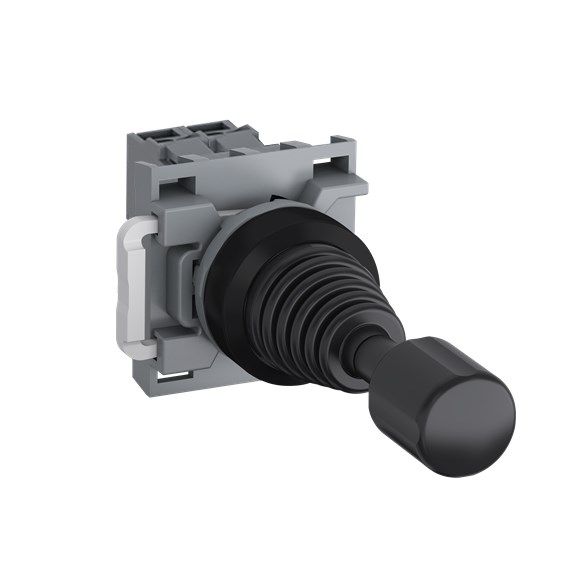

ABB MPJA402 Joystick Operator Switch Maintained 22mm dia Mounting Hole 2NC

Product Code: MPJA402

  • Compact 40 mm width design
  • Operates in -25 to 70°C range
  • Durable IP20, IP66, IP67, IP69K protection
  • Screw terminal with 0.8 N-m torque
  • Rated insulation voltage of 300 V
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 2NC
Sub-Function 4-Position
Actuating Direction Not Applicable
Bezel Material Plastic
Product Type Joystick Operator Switch
Brand ABB
Actuator Type Maintained
Contact Configuration 1NO+1NC
Degree of Pollution IP3
Degree of Protection IP20, IP66, IP67, IP69K
Function Maintained
Operational Temperature -25 to 70 deg C
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 300 V
Storage Temperature -40 to 85 deg C
Terminal Type Screw
Tightening Torque 0.8 N-m
Width 40 mm

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
