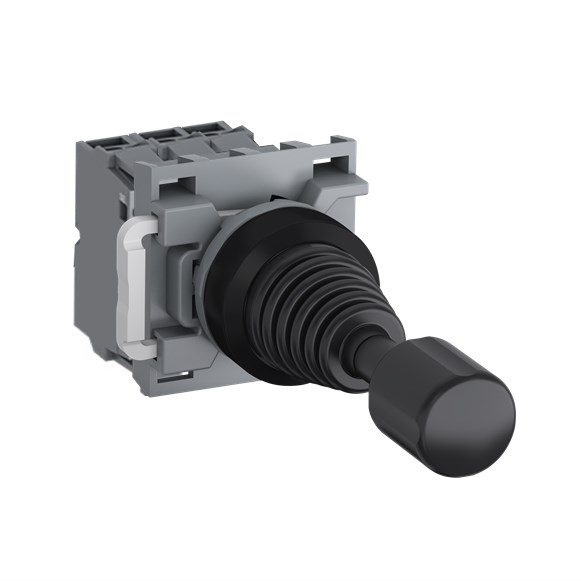

ABB MPJO421 Illuminated Joystick Operator Switch 230VAC 22mm dia Mounting Hole 2NO+1NC

Product Code: MPJO421

  • Selector switch with integrated LED illumination
  • Suitable for 230 VAC, 50/60 Hz operation
  • Wide temp range: -25 to 70°C operational
  • High protection: IP20, IP66, IP67, IP69K
  • Screw clamp connection for secure fit
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 2NO+1NC
No. of Positions 4
Sub-Function 4-Position
Actuating Direction Not Applicable
Bezel Material Plastic
Product Type Joystick Operator Switch
Brand ABB
Actuator Type Pilot Light Head
Connecting Capacity 1 x 0.75-2.5 sq-mm Flexible, 2 x 0.75-2.5 sq-mm Flexible, 1 x 0.75-2.5 sq-mm Solid, 2 x 0.75-2.5 sq-mm Solid
Connection Type Screw Clamp
Degree of Pollution IP3
Degree of Protection IP20, IP66, IP67, IP69K
Function Momentary
Illumination Illuminated
Lamp Colour Clear
Lamp Type Integrated LED
Mode of Operation Momentary
NEMA Rating NEMA 1, 12, 13, 3R, 4, 4x
Operational Temperature -25 to 70 deg C
Rated Frequency 50/60 Hz
Rated Voltage 230 VAC
Storage Temperature -40 to 85 deg C
Terminal Type Screw
Tightening Torque 0.9 N-m
Weight 0.018 kg
Wire Stripping Length 8 mm
