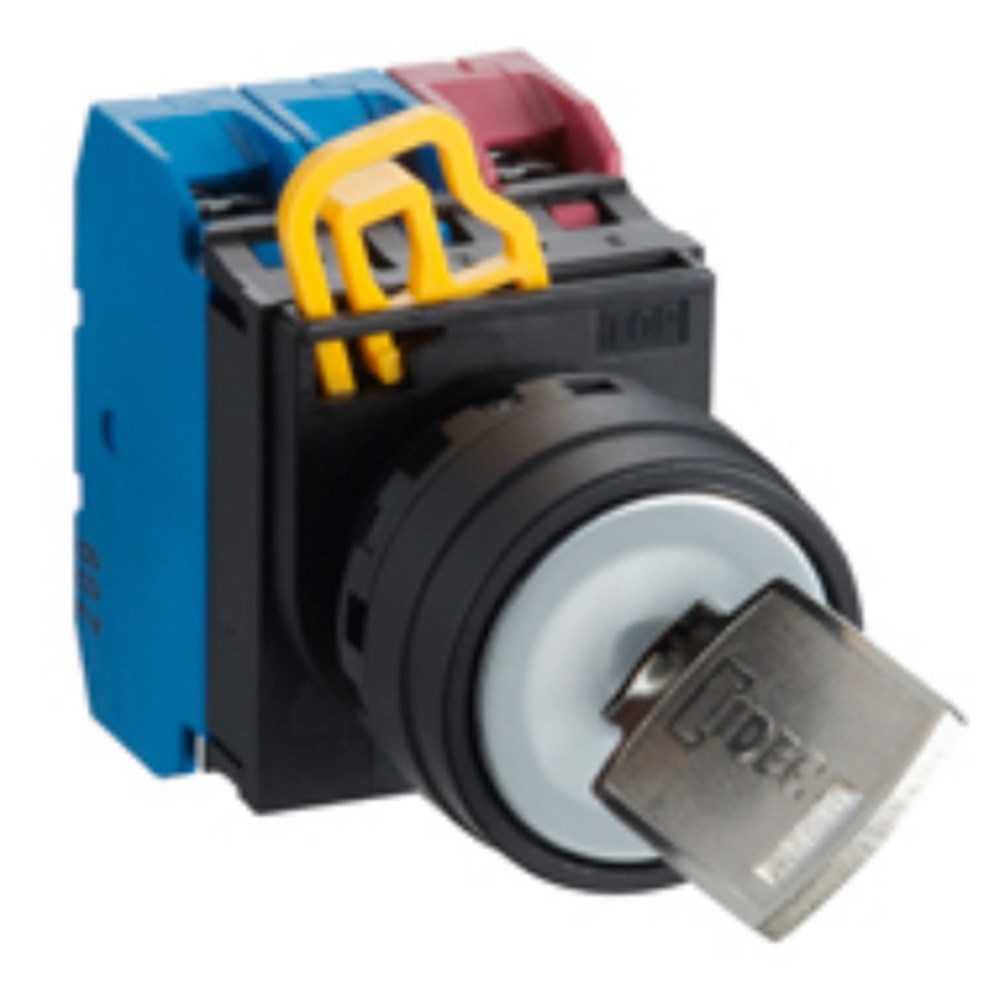

IDEC YW1K-2AE11 Selector Switch 2Position 1NO+1NC Left Center Right Maintained Key Round Plastic 30mm W

Product Code: YW1K-2AE11

  • Rated for 10 A, 50/60 Hz
  • IP20/IP65 protection rating
  • Operates in -20 to 55°C range
  • Key actuated with maintained function
  • Fits 22 mm mounting holes
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 1NO+1NC
Conventional Free-Air Thermal Current - Ith (A) Contact Rating - 10
No. of Positions 2
Operational Temperature Range (°C) -20 to +55
Rated Frequency (Hz) 50/60
Rated Insulation Voltage (V) 600
Insulation Resistance (MO) 100
Mounting Hole Diameter (mm) 22
Product Type Selector Switch
Brand IDEC
Series YW
Actuator Type Key
Bezel Material Plastic
Bezel Shape Round
Bezel Type Plastic
Contact Configuration 1NO+1NC
Degree of Protection IP20, IP65
Depth 69.8 mm
Function Maintained
Height 41.4 mm
Insulation Resistance 100 MOhm
Mode of Operation Maintained
Mounting Hole Diameter 22 mm
Number of Positions 2
Operation Position Left, Centre, Right
Operational Temperature -20 to 55 deg C
Rated Current 10 A
Rated Frequency 50/60 Hz
Rated Insulation Voltage 600 V
Standards and Approvals CSA C22.2 No.14, GB/TI4048.5, IEC60947-1, IEC60947-5-1, UL508
Terminal Type M3.5 Screw
Tightening Torque 1 N-m
Width 30 mm

Description

The IDEC YW1K-2AE11 is a 2-position key selector switch designed for secure and consistent performance. It features one normally open (NO) and one normally closed (NC) contact, suitable for various control applications. Engineered for 22mm mounting, this switch from the YW series ensures easy installation and reliable operation in industrial settings.
