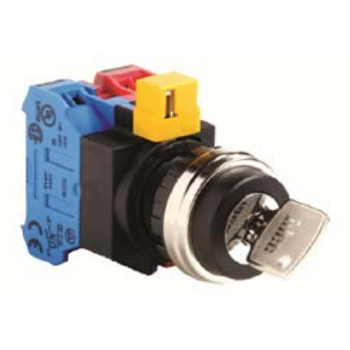

IDEC HW1K-2AF20-K Selector Switch 2Position 2NO Maintained Knob Key Plastic Screw Terminal

Product Code: HW1K-2AF20-K

  • Selector switch with key actuator for security
  • Handles up to 10 A at 50/60 Hz
  • Operates in -25 to 60°C environments
  • IP20/IP65 protection for varied conditions
  • CE, CSA, UL certified for safety standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 2NO
Insulation Resistance (MO) 100
Mounting Hole Diameter (mm) 22
No. of Positions 2
Operational Temperature Range (°C) -25 to +60
Rated Continuous Current (A) Contact Rating - 10
Pollution Degree 3
Rated Frequency (Hz) 50/60
Rated Insulation Voltage (V) 600
Rated Impulse Withstand Voltage (kV) 4
Product Type Selector Switch
Brand IDEC
Series HW
Actuator Type Key
Bezel Material Plastic
Bezel Type Plastic
Contact Configuration 2NO
Degree of Protection IP20, IP65
Function Maintained
Insulation Resistance 50 MOhm
Mode of Operation Maintained
Mounting Hole Diameter 22 mm
Number of Positions 2
Operational Temperature -25 to 60 deg C
Rated Current 10 A
Rated Frequency 50/60 Hz
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 600 V
Standards and Approvals CE, CSA, UL
Switch Type Knob
Terminal Type Screw

Description

The IDEC HW1K-2AF20-K Key Selector Switch is a robust control device offering a 2-position maintained operation. It comes with dual Normally Open (NO) contacts for effective circuit control. Engineered for 22mm mounting, this switch from the HW series ensures a secure and straightforward installation process. Ideal for various industrial applications, it provides engineers with a dependable switching solution.
