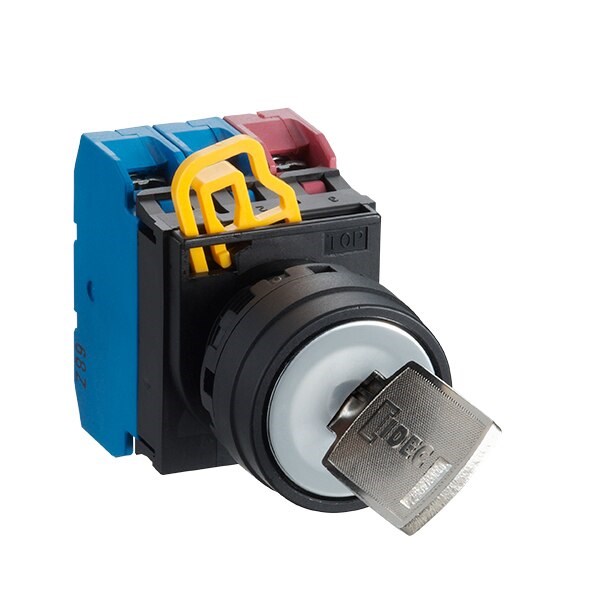

IDEC YW1K-32CE30 Selector Switch 3Position 3NO Left Key Round Plastic M3.5 Screw Terminal 30mm W 41.4mm H 69.8mm D

Product Code: YW1K-32CE30

  • Key selector switch with spring return operation
  • Rated current of 10 A, suitable for various uses
  • Operates in a wide temp range: -20 to 55°C
  • High protection levels: IP20 and IP65
  • Compatible with multiple standards like UL508
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

No. of Normally-open Contacts 3
Product Type Selector Switch
Brand IDEC
Series YW
Actuator Type Key
Bezel Material Plastic
Bezel Shape Round
Contact Configuration 3NO
Degree of Protection IP20, IP65
Depth 69.8 mm
Height 41.4 mm
Insulation Resistance 100 MOhm
Mode of Operation Spring Return
Mounting Hole Diameter 22 mm
Number of Positions 3
Operation Position Left
Operational Temperature -20 to 55 deg C
Rated Current 10 A
Rated Frequency 50/60 Hz
Rated Insulation Voltage 600 V
Standards and Approvals CSA C22.2 No.14, GB/TI4048.5, IEC60947-1, IEC60947-5-1, UL508
Terminal Type M3.5 Screw
Tightening Torque 1 N-m
Width 30 mm

Description

The IDEC YW1K-32CE30 is a 3-position key selector switch with a spring return from the left and three normally open (NO) contacts. Designed for 22mm mounting, this switch features space-saving 10mm thick contact blocks and a removable operator for flexibility. Its compact and lightweight design is complemented by a durable metal bezel. The separate contact block simplifies installation and maintenance, making it an efficient choice for various industrial applications.
