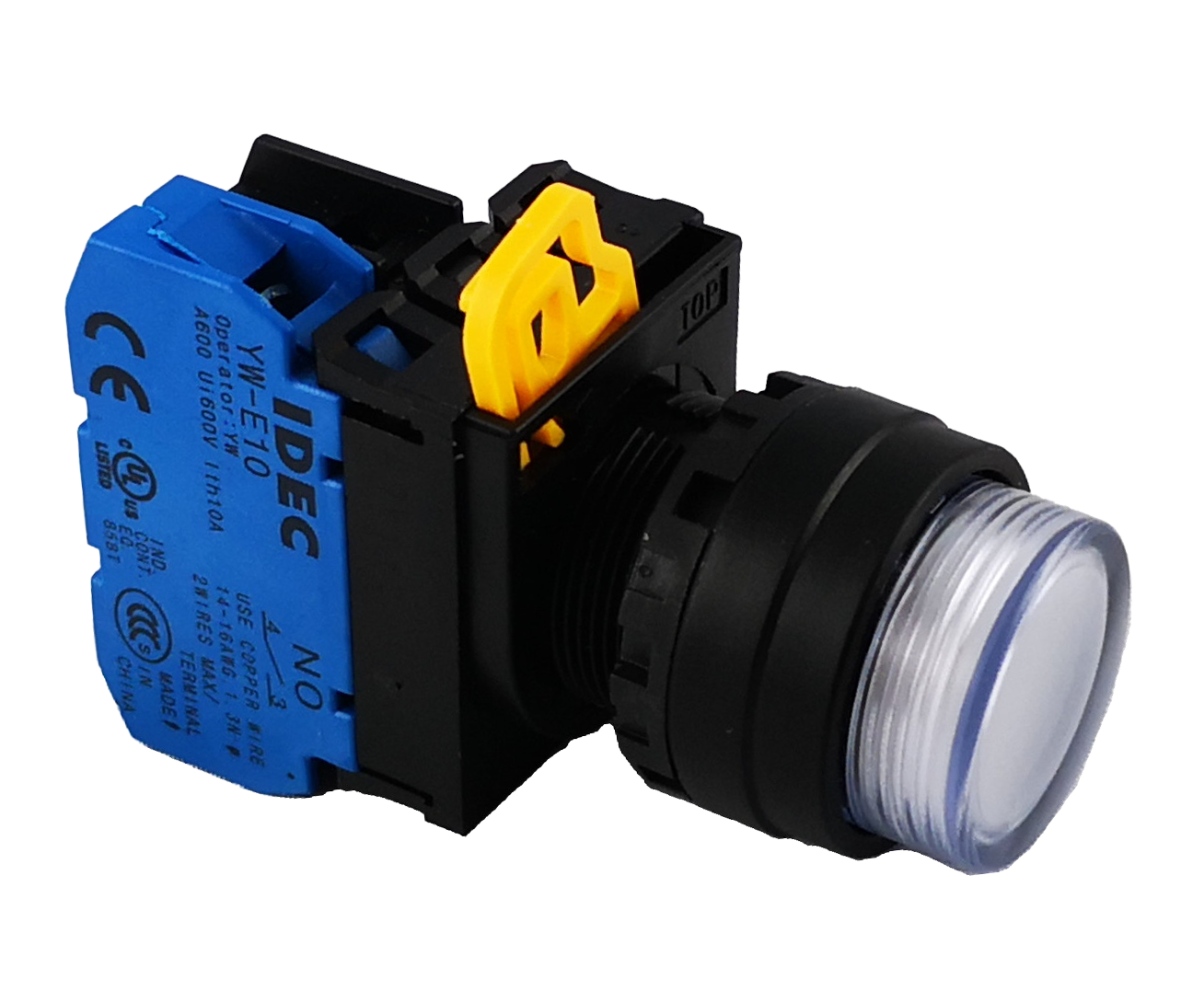

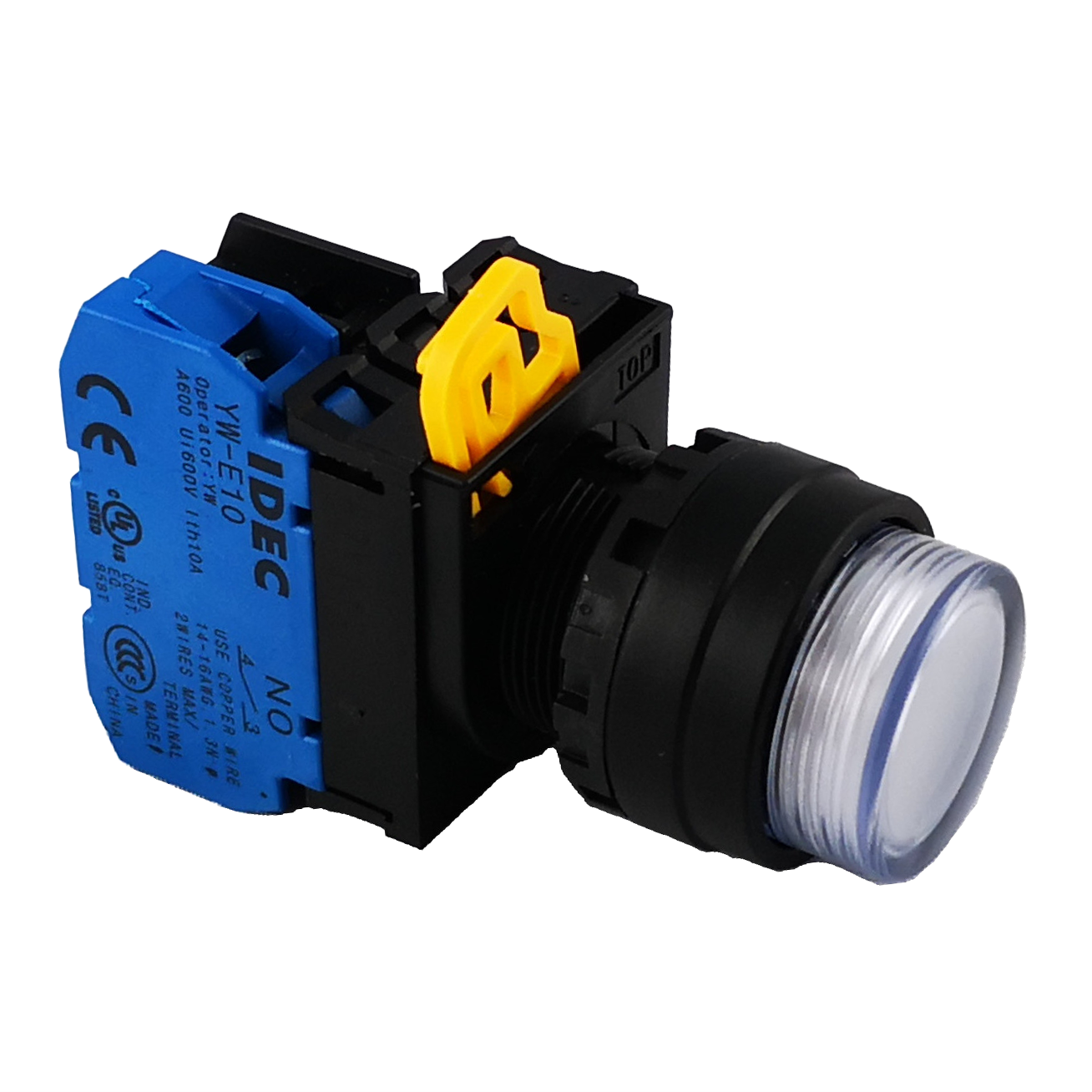

IDECYW1L-M2E10Q4PW Illuminated Pushbutton 22mm Extended Momentary Pure White 24VAC/DC 1NO

Product Code: YW1L-M2E10Q4PW

  • Illuminated pushbutton with pure white LED
  • IP65 front protection for harsh environments
  • Extended actuator with 1NO contact configuration
  • Mechanical life up to 0.25 million operations
  • cULus, CE, UKCA, and CCC certified
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 30W x 41.4H x 64.8D
Operating Voltage DC (V) 24
Operating Voltage AC (V) 24
No. of Normally-open Contacts 1
Product Type Pushbutton
Brand IDEC
Series YW
Actuator Type Extended
Bezel Material Plastic
Colour Pure White
Contact Configuration 1NO
Contact Material Silver
Cutout Size 22 mm
Degree of Protection IP65 Front, IP20 Terminal
Depth 64.8 mm
Diameter 22 mm
Function Momentary
Height 41.4 mm
Humidity 45-85%
Illumination Illuminated
Insulation Resistance 100 MOhm
Lamp Colour Pure White
Lamp Type Built-in LED
Mechanical Life 0.25 million Operations Single Contact Block, 0.1 million Operations Double Contact Block
Model Momentary Extended
Operational Temperature -20 to 55 deg C
Rated Continuous Current 10 A
Rated Insulation Voltage 600 V
Rated Voltage 24 VAC/DC
Shock Resistance 10 g/ms
Standards and Approvals cULus listed, CE Marked, UKCA Certified, CCC Certified
Storage Temperature -40 to 85 deg C
Terminal Type Screw
Vibration Resistance 5-55 Hz
Width 30 mm

Description

The IDEC YW1L-M2E10Q4PW is a compact, LED illuminated pushbutton designed for efficient use of space with its 10mm thick contact blocks. The removable operator feature allows for quick and easy changes, while the lightweight design ensures minimal load on panels. This pushbutton comes with a plastic bezel and offers simplified installation and maintenance due to its separate contact block. Ideal for streamlined control panel designs, it provides clear indication with pure white illumination.
