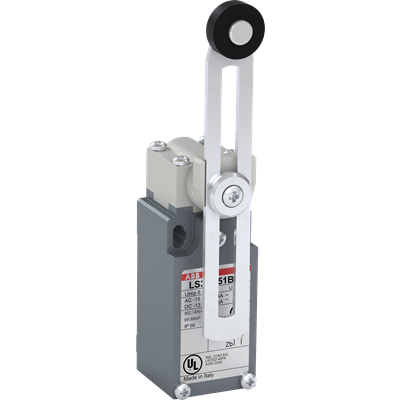

ABB LS33M51B11 Limit Switch 18mm Dia Adjustable Plastic Roller Lever 1NO-1NC 30mm W Metal

Product Code: LS33M51B11

Rated for multiple current levels: 3.1 A, 10 A, etc.
Compact size with dimensions of 46x30x100 mm
Durable metal housing with IP66 protection
Operates in temperatures from -25 to 70°C
Features a snap action switch with adjustable roller lever

Specifications

Product Type	Limit Switch
Brand	ABB
Actuator Material	Plastic
Actuator Type	18 mm Adjustable Roller Lever
Contact Configuration	1NO+1NC
Degree of Protection	IP66
Height	100 mm
Housing Material	Metal
Length	46 mm
Mechanical Durability	10000000 Operations
Mounting Type	30 mm EN 50047
Operational Temperature	-25 to 70 deg C
Rated Current	3.1 A, 10 A, 5.5 A, 3 A
Switching Type	Snap Action
Weight	0.188 kg
Width	30 mm

Documents

IPD Product Catalogue

IPD Product Catalogue V17
