Specifications

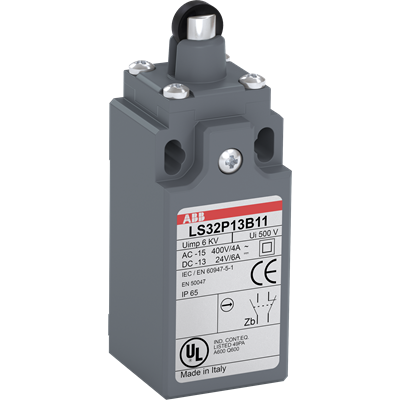

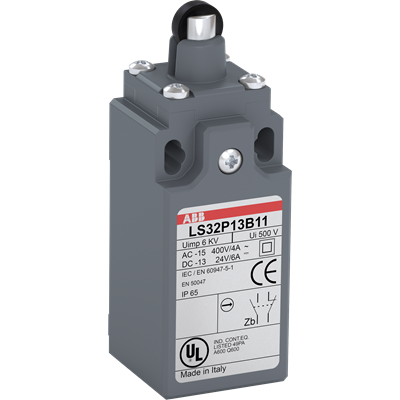

Product Type	Limit Switch
Brand	ABB
Actuating Speed	0.3 m/s
Actuator Material	Plastic
Actuator Type	Roller Plunger
Degree of Protection	IP65
Height	84 mm
Length	30 mm
Mechanical Durability	10000000 Operations
Number of Auxiliary Contacts	1
Operational Temperature	-25 to 70 deg C
Rated Current	3.1 A, 10 A, 5.5 A, 3 A
Rated Frequency	50/60 Hz
Switching Type	Snap Action
Terminal Type	Screw
Weight	0.064 kg
Width	30 mm
