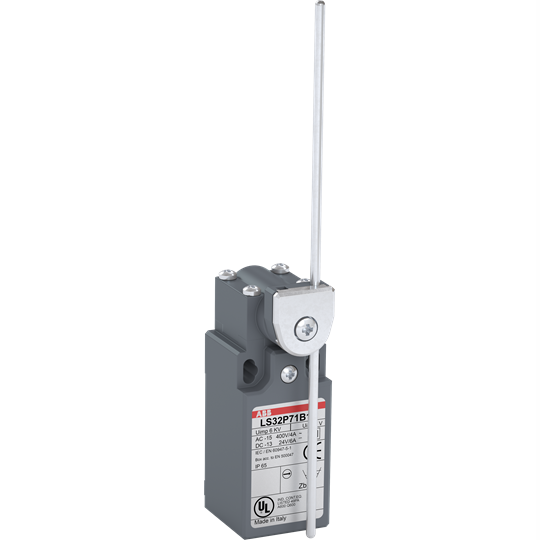

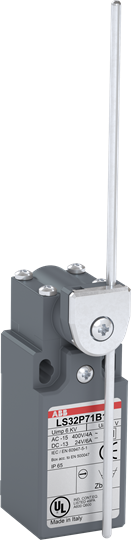

ABB LS32P71B11 Limit Switch 3mm Adjustable Stainless Steel Rod Lever 1NO-1NC 30mm W Plastic

Product Code: LS32P71B11

Rated for multiple currents: 3.1 A, 10 A, 5.5 A, 3 A
Durable plastic housing with IP65 protection
Operates in temps from -25 to 70°C
CE and UL approved for safety
Long-lasting with 10 million operations

Specifications

Product Type	Limit Switch
Brand	ABB
Actuator Material	Stainless Steel
Actuator Type	3 mm Adjustable Rod Lever
Contact Configuration	1NO+1NC
Degree of Protection	IP65
Height	155.5 mm
Housing Material	Plastic
Length	41 mm
Mechanical Durability	10000000 Operations
Mounting Type	30 mm EN 50047
Operational Temperature	-25 to 70 deg C
Rated Current	3.1 A, 10 A, 5.5 A, 3 A
Standards and Approvals	CE,UL
Switching Type	Snap Action
Weight	0.091 kg
Width	30 mm

Documents

IPD Product Catalogue

IPD Product Catalogue V17
