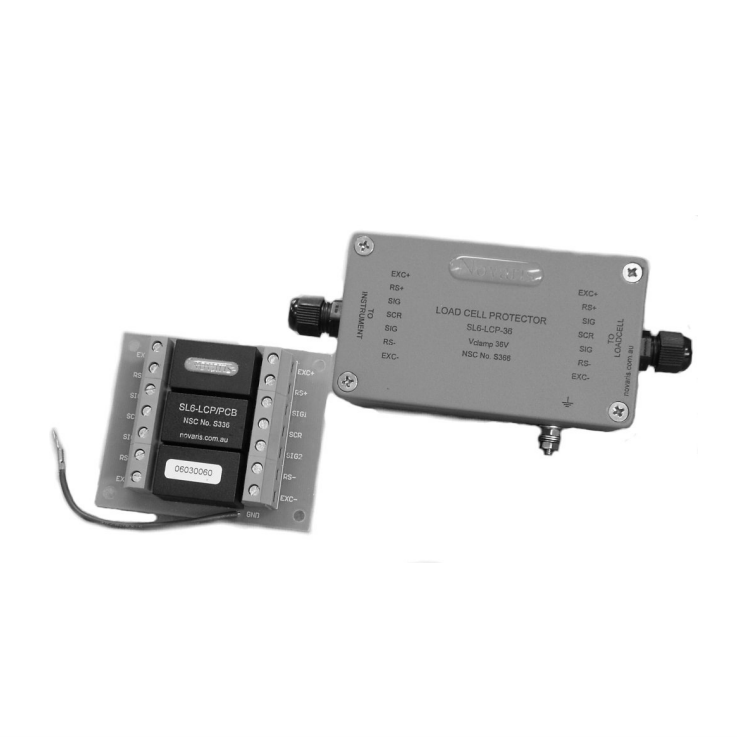

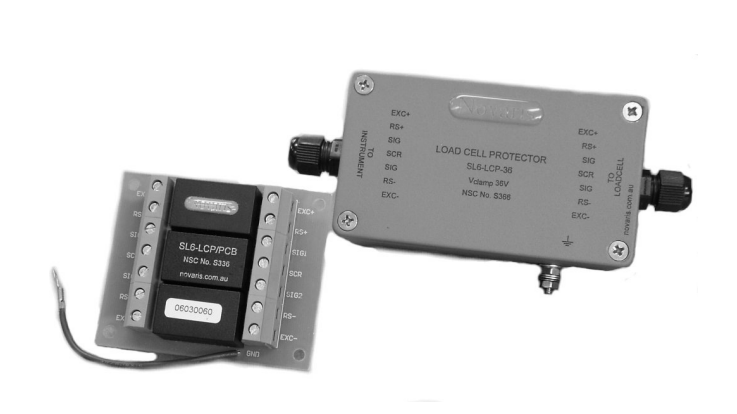

Novaris LCP-36 Load Cell Protector 0.25kA 36VDC Panel Mount 116mm W 56mm D 65mm H Aluminium IP65

Product Code: LCP-36

Surge protection for 36 VDC systems
Compact panel mount design
IP65 rated for dust & water resistance
Operates in -40 to 85°C temp range
Complies with IEC, ITU-T, AS/NZS standards

Specifications

Enclosure Material	Aluminium
Product Type	Load Cell Protector
Brand	NOVARIS
Series	LCP
Degree of Protection	IP65
Depth	56 mm
Height	65 mm
Humidity	5-95%
Material	Aluminium
Mounting Type	Panel
Operational Temperature	-40 to 85 deg C
Rated Current	0.25 kA
Rated Voltage	36 VDC
Standards and Approvals	IEC61643-21, ITU-T K.44, AS/NZS 1768, IEEE C62.41, UL497B
Tightening Torque	0.5 N-m
Voltage Protection Level	<0.07 kV
Weight	600 g
Width	116 mm
