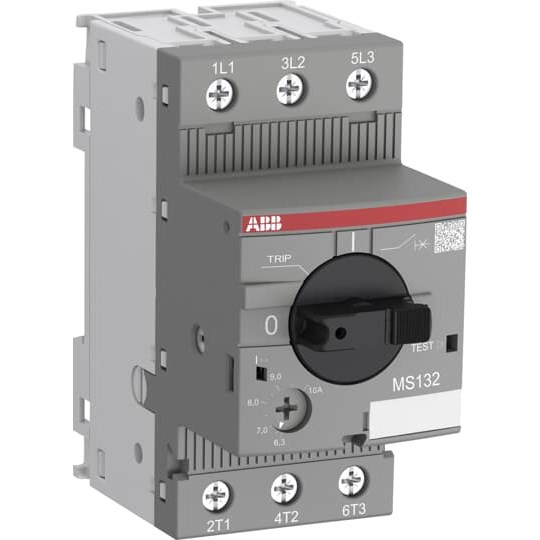

ABB MS132-0.16 Manual Motor Starter 0.03kW 690VAC 0.16A

Product Code: MS132-0.16

  • Operates at 690 VAC, 0.16 A
  • Rotary handle for easy control
  • Meets IEC/EN & UL standards
  • Compact size: 45x90x86.75 mm
  • High durability with 50000 cycles
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 45W x 90H x 86.75D
No. of Poles 3
Power Loss (W) 5.1
Rated Insulation Voltage (V) 690
Rated Instantaneous Short-Circuit Current - Ii (A) 2
Rated Operational Current (A) 0.16
Rated Operational Voltage DC (V) 250
Rated Operational Power AC-3 400V (kW) 0.03
Rated Operational Voltage AC (V) 690
Rated Uninterrupted Current - Iu (A) 0.16
Breaking Capacity 400V AC - Icu (kA) 100
Thermal Current Setting Range (A) 0.10 - 0.16
Design of Control Element Turn Button
Overload Release Current Setting (A) 0.1
Main Circuit Electrical Connection Screw Connection
Phase Failure Sensitive Yes
Product Type Manual Motor Starter
Brand ABB
Actuator Type Rotary Handle
Breaking Capacity 100 kA
Control Element Type Turn Button
Current Setting Range 0.10-0.16 A
Degree of Pollution IP3
Degree of Protection IP10, IP20
Depth 86.75 mm
Electrical Connection Screw
Electrical Durability 50000 Cycles
Height 90 mm
Number of Poles 3
Operational Temperature -50 to 80 deg C
Overload Release Current Setting 0.1 A
Power Loss 5.1 W
Rated Current 0.16 A
Rated Frequency 50/60 Hz
Rated Insulation Voltage 690 V
Rated Power 0.03 kW
Rated Short Circuit Current 2 A
Rated Voltage 690 VAC
Standards and Approvals IEC/EN 60947-1, IEC/EN 60947-2, IEC/EN 60947-4-1, UL 60947-1, UL 60947-4-1, IEC 60335-2-40 A2L
Switching Type Thermomagnetic
Terminal Type Screw
Thermal Overload Protection Yes
Tightening Torque 0.8-1.2 N-m
Width 45 mm
Wire Stripping Length 9 mm

Description

The MS132-0.16 manual motor starter (also known as motor protection circuit breaker or manual motor protector) is a compact 45 mm width device with a rated operational current of Ie = 0.16 A. This device is used to manually switch on and off motors and to protect them reliably and without the need for a fuse from short-circuits, overload and phase failures. The manual motor starter offers a rated service short-circuit breaking capacity Ics = 100 kA at 400 VAC and trip class 10. Further features are the build-in disconnect function, temperature compensation, trip-free mechanism and a rotary handle with a clear switch position indication. The manual motor starter is suitable for three- and single-phase applications. The handle is lockable to protect against unauthorized changes. Auxiliary contacts, signaling contacts, undervoltage releases, shunt trips, 3-phase bus bars, power in-feed blocks and terminal spacers are available as accessory.
