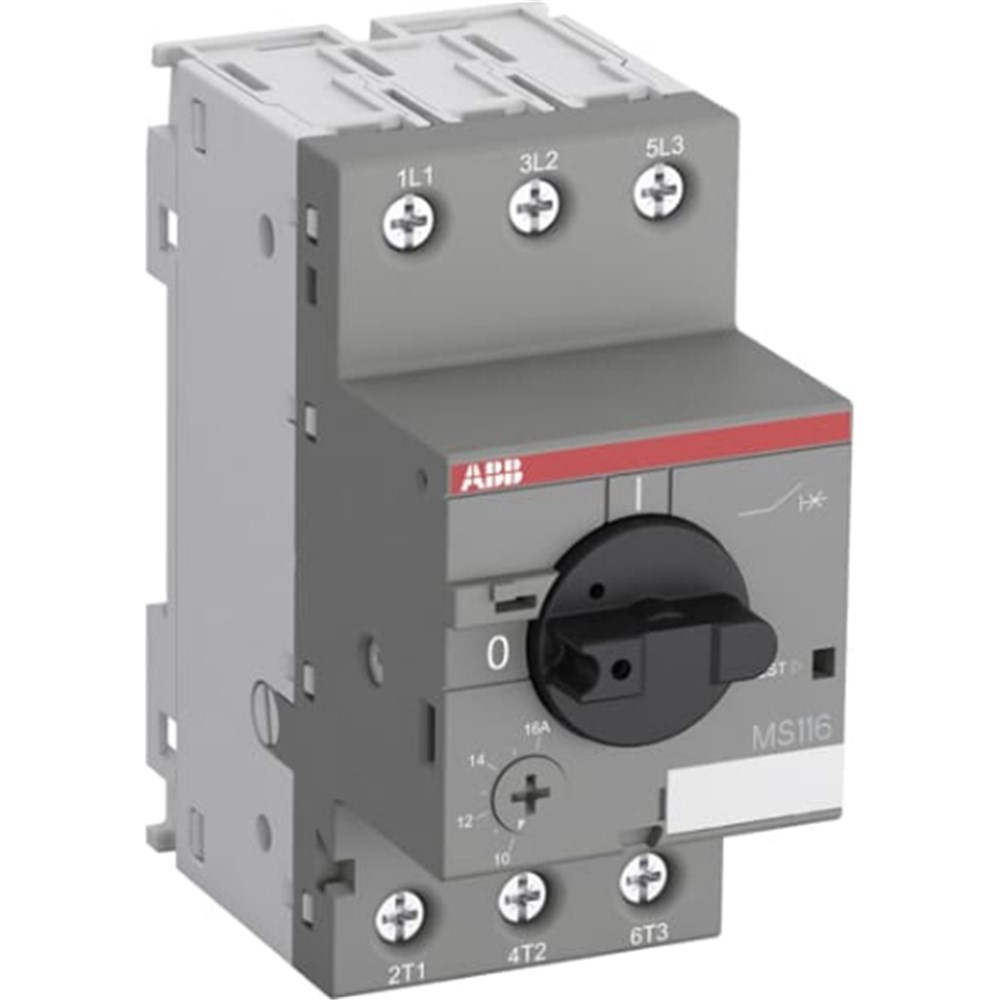

ABB MS116-0.4 Manual Motor Starter 0.09kW 690V 0.4A

Product Code: MS116-0.4

  • Rated voltage of 690 V for robust performance
  • Rotary handle actuator for easy operation
  • Compact size: 45 mm width, 90 mm height
  • IP20 protection against solid objects
  • Complies with IEC/EN and UL standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 45W x 90H x 85.6D
No. of Poles 3
Power Loss (W) 5.1
Rated Insulation Voltage (V) 690
Rated Instantaneous Short-Circuit Current - Ii (A) 5
Rated Operational Current (A) 0.4
Rated Operational Power AC-3 400V (kW) 0.09
Rated Uninterrupted Current - Iu (A) 0.4
Breaking Capacity 400V AC - Icu (kA) 100
Thermal Current Setting Range (A) 0.25 - 0.40
Design of Control Element Turn Button
Overload Release Current Setting (A) 0.25
Main Circuit Electrical Connection Screw Connection
Rated Operational Voltage (V) 690
Phase Failure Sensitive Yes
Product Type Manual Motor Starter
Brand ABB
Actuator Type Rotary Handle
Breaking Capacity 100 kA
Control Element Type Turn Button
Current Setting Range 0.25-0.4 A
Degree of Protection IP20
Depth 85.6 mm
Electrical Connection Screw
Height 90 mm
Main Circuit Connecting Capacity Flexible with Ferrule 1/2 x 0.75-2.5 sq-mm, Flexible with Insulated Ferrule 1/2 x 0.75-2.5 sq-mm, Flexible 1/2 x 0.75-2.5 sq-mm, Rigid 1/2 x 1-4 sq-mm
Number of Poles 3
Operational Temperature -25 to 70 deg C
Overload Release Current Setting 0.25 A
Power Loss 5.1 W
Rated Current 0.4 A
Rated Insulation Voltage 690 V
Rated Power 0.09 kW
Rated Short Circuit Current 5 A
Rated Voltage 690 V
Standards and Approvals IEC/EN 60947-1, IEC/EN 60947-2, IEC/EN 60947-4-1, UL 60947-1, UL 60947-4-1, IEC 60335-2-40 A2L
Storage Temperature -50 to 80 deg C
Switching Type Thermomagnetic
Terminal Type Screw
Thermal Overload Protection Yes
Tightening Torque 0.8-1.2 N-m
Width 45 mm
Wire Stripping Length 9 mm

Description

The MS116-0.4 manual motor starter (also known as motor protection circuit breaker or manual motor protector) is a compact 45 mm width device with a rated operational current of Ie = 0.40 A. This device is used to manually switch on and off motors and to protect them reliably and without the need for a fuse from short-circuits, overload and phase failures. The manual motor starter offers a rated service short-circuit breaking capacity Ics = 50 kA at 400 VAC and trip class 10A. Further features are the build-in disconnect function, temperature compensation, trip-free mechanism and a rotary handle with a clear switch position indication. The manual motor starter is suitable for three- and single-phase applications. Auxiliary contacts, signaling contacts, undervoltage releases, shunt trips, 3-phase bus bars, power in-feed blocks and locking devices for protection against unauthorized changes are available as accessory.
