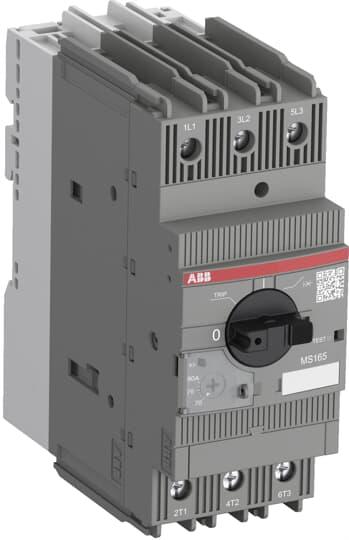

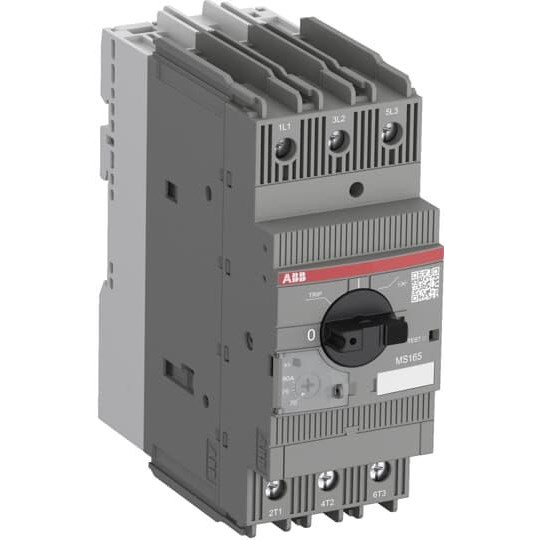

Product Code: MS165-16

Rated voltage of 690 VAC, suitable for high-demand use
Rotary handle actuator for easy operation
Compact dimensions: 55mm width, 142.65mm height
IP20 protection against solid objects over 12.5 mm
Thermomagnetic switching type for reliable performance

Specifications

Dimensions (mm)	55W x 142.65H x 122.1D
No. of Poles	3
Power Loss (W)	11.43
Rated Insulation Voltage (V)	1000
Rated Instantaneous Short-Circuit Current - Ii (A)	240
Rated Operational Current (A)	16
Rated Operational Voltage DC (V)	250
Rated Operational Power AC-3 400V (kW)	7.5
Rated Operational Voltage AC (V)	690
Rated Uninterrupted Current - Iu (A)	16
Breaking Capacity 400V AC - Icu (kA)	100
Thermal Current Setting Range (A)	10 - 16
Design of Control Element	Turn Button
Overload Release Current Setting (A)	10
Main Circuit Electrical Connection	Screw Connection
Phase Failure Sensitive	Yes
Product Type	Manual Motor Starter
Brand	ABB
Actuator Type	Rotary Handle
Breaking Capacity	100 kA
Control Element Type	Turn Button
Current Setting Range	10-16 A
Degree of Protection	IP20
Depth	122.1 mm
Electrical Connection	Screw
Height	142.65 mm
Main Circuit Connecting Capacity	Flexible with Ferrule 1/2 x 1-35 sq-mm, Flexible with Insulated Ferrule 1/2 x 1-35 sq-mm, Flexible 1/2 x 1-35 sq-mm, Rigid 1/2 x 1-4 sq-mm, Solid 1/2 x 1-4 sq-mm, Stranded 1/2 x 1-50 sq-mm
Number of Poles	3
Operational Temperature	-25 to 60 deg C
Overload Release Current Setting	10 A
Power Loss	11.43 W
Rated Current	16 A
Rated Insulation Voltage	1000 V
Rated Power	7.5 kW
Rated Short Circuit Current	240 A
Rated Voltage	690 VAC
Standards and Approvals	CSA 22.2 No. 14, IEC/EN 60947-1, IEC/EN 60947-2, IEC/EN 60947-4-1, UL 60947-4-1
Storage Temperature	-50 to 80 deg C
Switching Type	Thermomagnetic
Terminal Type	Screw
Thermal Overload Protection	Yes
Tightening Torque	4 N-m
Width	55 mm
Wire Stripping Length	16 mm

Description

MS165 is a compact and powerful range for motor protection up to 45 kW (400 V) / 80 A in width of 55 mm. They offer a reliable protection for motors in the event of overload or phase failure. The devices have trip class 10. This type has also a clear and reliable indication of fault in a separate window in the event of short-circuit tripping. Further features are the build-in disconnect function, temperature compensation, trip-free mechanism and a rotary handle with a clear switch position indication. The manual motor starter (also known as motor protection circuit breaker or manual motor protector) is suitable for three- and single phase applications. The handle is lockable to protect against unauthorized changes. Auxiliary contacts, signaling contacts, undervoltage releases, shunt trips, power in-feed blocks are available as accessory. These are suitable throughout the MS116/MS132/MS165 range.
