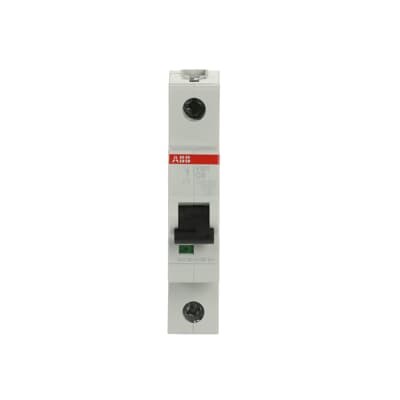

ABB S201PC6 Miniature Circuit Breaker 12.5kA 1-P 6A 230VAC C-Curve

Product Code: S201PC6

Rated current of 6 A
Breaking capacity of 12.5 kA
IP20 protection rating
Screw clamp terminals
Compliant with IEC/EN standards

Specifications

Product Type	Miniature Circuit Breaker
Brand	ABB
Breaking Capacity	12.5 kA
Curve Type	C
Degree of Pollution	IP3
Degree of Protection	IP20
Dielectric Test Voltage	2 kV
Electrical Durability	20000 Cycles
Housing Colour	RAL 7035 Grey
Number of Poles	1
Power Loss	2.2 W
Rated Current	6 A
Rated Frequency	50/60 Hz
Rated Insulation Voltage	440 V
Rated Voltage	230 VAC
Standards and Approvals	IEC/EN 60898-1, IEC/EN 60947-2, UL 1077, CSA 22.2 No. 235
Terminal Type	Screw Clamp
Tightening Torque	2.8 N-m
