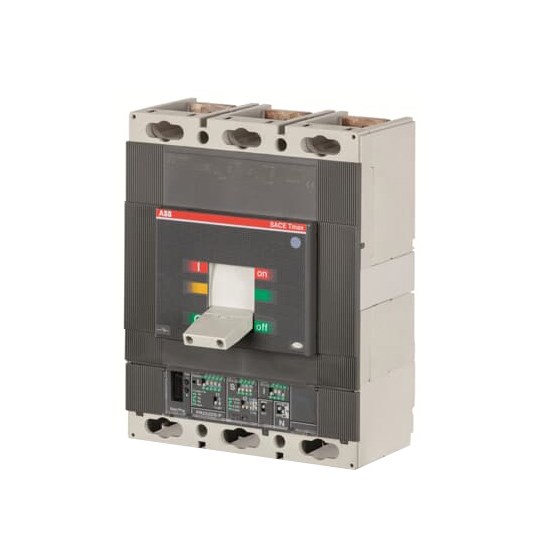

ABB 1SDA060291R1 Moulded Case Circuit Breaker 690VAC 800A 3-P 25kA Front For: T6H

Product Code: 1SDA060291R1

  • Rated current of 800 A
  • Breaking capacity at 25 kA
  • Front connection type
  • Complies with IEC 309 standards
  • Suitable for use with T6H
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Suitable For T6
Product Type Moulded Case Circuit Breaker
Brand ABB
Breaking Capacity 25 kA
Connection Type Front
Number of Poles 3
Power Loss 32 W
Rated Current 800 A
Rated Impulse Withstand Voltage 8 kV
Rated Insulation Voltage 1000 V
Rated Voltage 690 VAC
Release Type EL
Standards and Approvals IEC 309
Suitable For Use With T6H
Test Voltage 3500 V
Weight 9.5 kg
Width 210 mm

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
