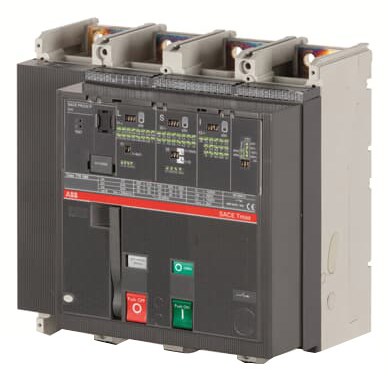

ABB 1SDA062891R1 Moulded Case Circuit Breaker 690VAC 1250A 4-P 50kA Front For: S4L

Product Code: 1SDA062891R1

  • Rated current of 1250 A
  • Impulse withstand voltage: 8 kV
  • Breaking capacity: 50 kA
  • Front connection type
  • Complies with IEC 309 standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Suitable For T7
Product Type Moulded Case Circuit Breaker
Brand ABB
Breaking Capacity 50 kA
Connection Type Front
Number of Poles 4
Power Loss 47 W
Rated Current 1250 A
Rated Impulse Withstand Voltage 8 kV
Rated Insulation Voltage 1000 V
Rated Voltage 690 VAC
Release Type EL
Standards and Approvals IEC 309
Suitable For Use With S4L
Weight 14 kg
Width 280 mm
