Specifications

Dimensions (mm)	101.6W x 130H x 70D
No. of Poles	4
Power Loss (W)	10.7
Rated Current (A)	125
Rated Frequency (Hz)	50/60
Rated Insulation Voltage (V)	800
Rated Instantaneous Short-Circuit Current - Ii (A)	1250
Rated Uninterrupted Current - Iu (A)	160
Breaking Capacity 415V AC - Icu (kA)	50
I - Short-circuit Current Setting I3 (A)	1250
L - Overload Current Setting I1 (A)	87.5 - 125
Design of Control Element	Toggle
EAN	8015644013394
MCCB Type	XT1 Frame
Poles	4P
Breaking Capacity (kA)	50
Current Rating (A)	125
Tripping Unit	TMD
Voltage (V)	690 AC
Trip Unit - Thermal Magnetic	TMD
Main Circuit Electrical Connection	Bolt Connection
Main Current Circuit Connection Position	Front Side
Rated Voltage (V)	690
Product Type	Moulded Case Circuit Breaker
Brand	ABB
Breaking Capacity	50 kA
Connection Type	Front
Current Setting Range	87.5-125 A
Degree of Protection	IP20
Main Circuit Connecting Capacity	45.5-80 sq-mm
Number of Poles	4
Power Loss	10.7 W
Rated Current	125 A
Rated Frequency	50/60 Hz
Rated Impulse Withstand Voltage	8 kV
Rated Insulation Voltage	800 V
Rated Short Circuit Current	1250 A
Rated Voltage	690/500 VAC/VDC
Release Type	TM
Standards and Approvals	IEC60947-2
Suitable For Use With	XT1S
Terminal Type	Bolt
Trip Unit	TMD
Version	Fixed
Weight	1.4 kg
Width	101.6 mm

Description

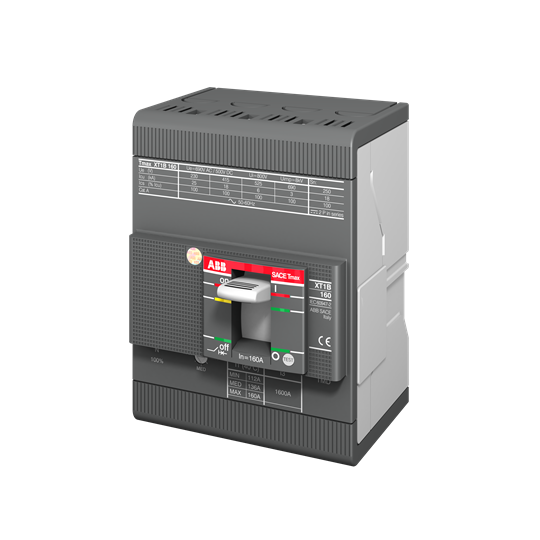

C.BREAKER TMAX XT1S 160 FIXED FOUR-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMD R 125-1250 A FULLY RATED NEUTRAL
