Specifications

Dimensions (mm)	105W x 150H x 70D
No. of Poles	3
Power Loss (W)	7.9
Rated Current (A)	160
Rated Frequency (Hz)	50/60
Rated Insulation Voltage (V)	800
Rated Instantaneous Short-Circuit Current - Ii (A)	960
Rated Uninterrupted Current - Iu (A)	250
Breaking Capacity 415V AC - Icu (kA)	50
Rated Voltage (V)	690
I - Short-circuit Current Setting I3 (A)	960 - 1920
Design of Control Element	Toggle
EAN	8015644021870
MCCB Type	XT3 Frame
Poles	3P
Breaking Capacity (kA)	50
Current Rating (A)	160
Tripping Unit	MA
Voltage (V)	690 AC
Trip Unit - Magnetic	MA
Main Circuit Electrical Connection	Bolt Connection
Main Current Circuit Connection Position	Front Side
Product Type	Moulded Case Circuit Breaker
Brand	ABB
Breaking Capacity	6 kA
Connection Type	Front
Degree of Protection	IP20
Main Circuit Connecting Capacity	85-192 sq-mm
Number of Poles	3
Power Loss	7.9 W
Rated Current	160 A
Rated Frequency	50/60 Hz
Rated Impulse Withstand Voltage	8 kV
Rated Insulation Voltage	800 V
Rated Short Circuit Current	960-1920 A
Rated Voltage	690/500 VAC/VDC
Release Type	M
Standards and Approvals	IEC60947-2
Suitable For Use With	XT3S
Terminal Type	Bolt
Trip Unit	MA
Version	Fixed
Weight	1.7 kg
Width	105 mm

Description

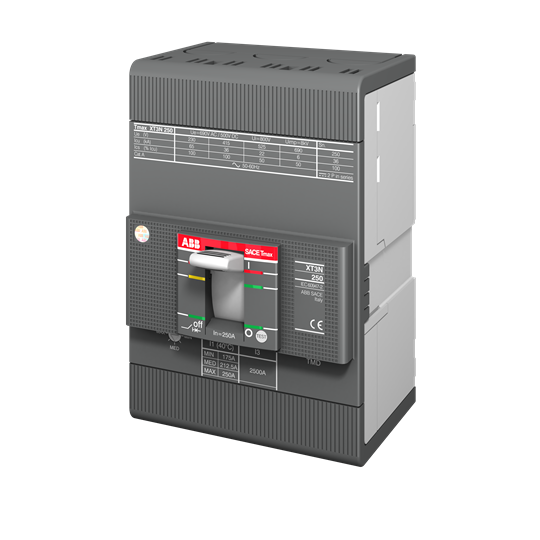

C.BREAKER TMAX XT3S 250 FIXED THREE-POLE WITH FRONT TERMINALS AND MAGNETIC RELEASE MA Iu 160 A I3=960...1920 A
