Specifications

Dimensions (mm)	140W x 160H x 82.5D
No. of Poles	4
Power Loss (W)	16.4
Rated Current (A)	250
Rated Frequency (Hz)	50/60
Rated Insulation Voltage (V)	1000
Rated Instantaneous Short-Circuit Current - Ii (A)	250
Rated Uninterrupted Current - Iu (A)	250
Breaking Capacity 415V AC - Icu (kA)	70
G - Earth Fault Current Setting I4 (A)	50 - 250
I - Short-circuit Current Setting I3 (A)	250 - 2500
L - Overload Current Setting I1 (A)	100 - 250
S - Selective Short-circuit Current Setting I2 (A)	250 - 2500
Design of Control Element	Toggle
EAN	8015644024567
MCCB Type	XT4 Frame
Poles	4P
Breaking Capacity (kA)	70
Current Rating (A)	250
Tripping Unit	EKIP DIP LSIG
Voltage (V)	690 AC
Trip Unit - Electronic	EKIP DIP LSIG
Overload Release Current Setting (A)	100
Main Circuit Electrical Connection	Bolt Connection
Main Current Circuit Connection Position	Front Side
Rated Voltage (V)	690
Product Type	Moulded Case Circuit Breaker
Brand	ABB
Breaking Capacity	20 kA
Connection Type	Front
Degree of Protection	IP20
Main Circuit Connecting Capacity	85-200 sq-mm
Number of Poles	3
Power Loss	16.4 W
Rated Current	250 A
Rated Frequency	50/60 Hz
Rated Impulse Withstand Voltage	8 kV
Rated Insulation Voltage	1000 V
Rated Voltage	690 VAC
Release Type	EL
Standards and Approvals	IEC60947-2
Suitable For Use With	XT4H
Terminal Type	Bolt
Trip Unit	Ekip Dip LSI
Version	Fixed
Weight	3.5 kg
Width	140 mm

Description

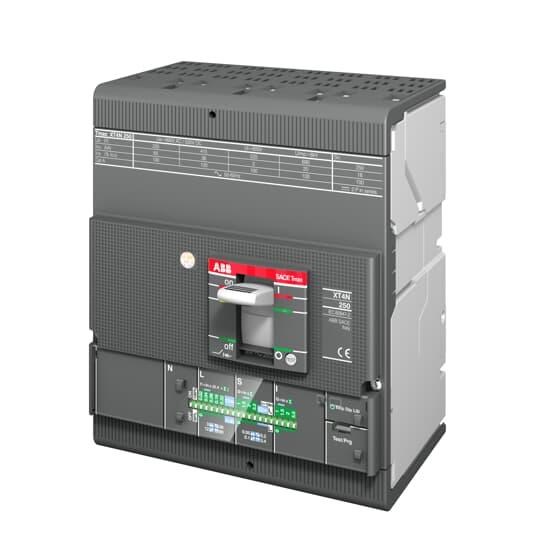

C.BREAKER TMAX XT4H 250 FIXED FOUR-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC EKIP-LSIG R 250 A
