Specifications

Dimensions (mm)	140W x 160H x 82.5D
No. of Poles	4
Power Loss (W)	1.4
Rated Current (A)	63
Rated Frequency (Hz)	50/60
Rated Insulation Voltage (V)	1000
Rated Instantaneous Short-Circuit Current - Ii (A)	63
Rated Uninterrupted Current - Iu (A)	160
Breaking Capacity 415V AC - Icu (kA)	50
Rated Voltage (V)	690
S/I Current Setting I2/I3 (A)	63 - 630
L - Overload Current Setting I1 (A)	25.2 - 63
Design of Control Element	Toggle
EAN	8015644023980
MCCB Type	XT4 Frame
Poles	4P
Breaking Capacity (kA)	50
Current Rating (A)	63
Tripping Unit	EKIP DIP LS/I
Voltage (V)	690 AC
Trip Unit - Electronic	EKIP DIP LS/I
Overload Release Current Setting (A)	25.2
Main Circuit Electrical Connection	Bolt Connection
Main Current Circuit Connection Position	Front Side
Product Type	Moulded Case Circuit Breaker
Brand	ABB
Breaking Capacity	12 kA
Connection Type	Front
Degree of Protection	IP20
Main Circuit Connecting Capacity	85-200 sq-mm
Number of Poles	4
Power Loss	1.4 W
Rated Current	63 A
Rated Frequency	50/60 Hz
Rated Impulse Withstand Voltage	8 kV
Rated Insulation Voltage	1000 V
Rated Voltage	690 VAC
Release Type	EL
Standards and Approvals	IEC60947-2
Suitable For Use With	XT4S
Terminal Type	Bolt
Trip Unit	Ekip Dip LSI
Version	Fixed
Weight	3.5 kg
Width	140 mm

Description

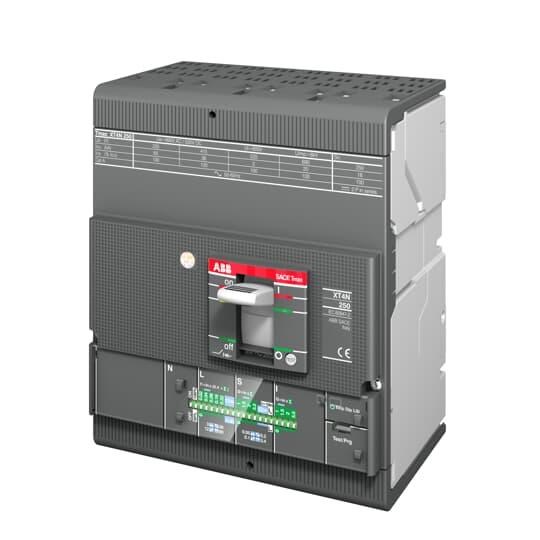

C.BREAKER TMAX XT4S 160 FIXED FOUR-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC EKIP-LS/I R 63 A
