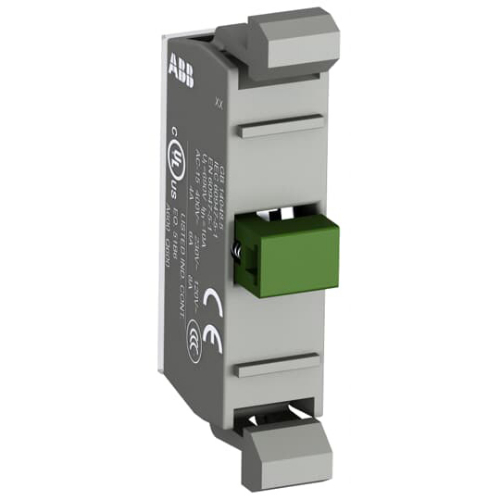

ABB MCBL-01 Micro Switch Block 1NC 125VAC/DC Front Mount Non-Illuminated IP20 For Pilot Devices

Product Code: MCBL-01

  • Rated for 125 VAC/VDC, 50/60 Hz
  • Compact size: 10x44x15 mm
  • IP20 protection rating
  • Operates in -25 to 70°C range
  • Screw terminal connections
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Power Loss (W) 0.45
Pollution Degree 3
Rated Frequency (Hz) 50/60
Rated Insulation Voltage (V) 125
Rated Operational Voltage AC/DC (V) 125
Tightening Torque (Nm) 0.8
Suitable For Pilot Devices
Ambient Temperature Range (°C) -25 to 70
Dimensions (mm) 10W x 44H x 15D
Weight (kg) 0.01
Rated Operational Current DC-13 24V (A) 0.3
Storage Temperature Range (°C) -40 to 85
No. of Normally-closed Contacts 1
Wire Stripping Length (mm) 6
Accessory Type Microswitch Contact Block
Product Type Micro Switch Block
Brand ABB
Ambient Temperature -25 to 70 deg C
Connecting Capacity Flexible with Ferrule 1/2 x 0.5 - 1.5 sq-mm, Flexible with Insulated Ferrule 1/2 x 0.5 - 1.5 sq-mm, Flexible 1/2 x 0.5 - 1.5 sq-mm, Solid 1/2 x 0.5 - 1.5 sq-mm
Connection Type Screw
Contact Configuration 1NC
Degree of Protection IP20
Depth 15 mm
Height 44 mm
Illumination Non-Illuminated
Mounting Type Front
Power Loss 0.45 W
Rated Frequency 50/60 Hz
Rated Insulation Voltage 125 V
Rated Operational Current 0.3 A
Rated Voltage 125 VAC/VDC
Storage Temperature -40 to 85 deg C
Suitable For Use With Pilot Devices
Terminal Type Screw
Tightening Torque 1 N-m
Weight 0.01 kg
Width 10 mm
Wire Stripping Length 6 mm

Description

The MCBL-01 Contact Block is: - Non-illuminated - Micro switch contact block - Front mounting - silver gold plated (Ag/Au) - 1NC - 125V. This Contact Block is part of ABB's modular plastic range, the most versatile range with a high level of flexibility and market-leading electrical ratings. Engineered for total reliability, longer lifetime, and highest mechanical durability. Self-cleaning contacts ensure reliable operation without the need for maintenance, increasing uptime. A high degree of protection guarantees reliability in extreme environments. The innovative design simplifies the entire process, from selection to easy and quick, tool-free installation. The perfect solution for every application.
