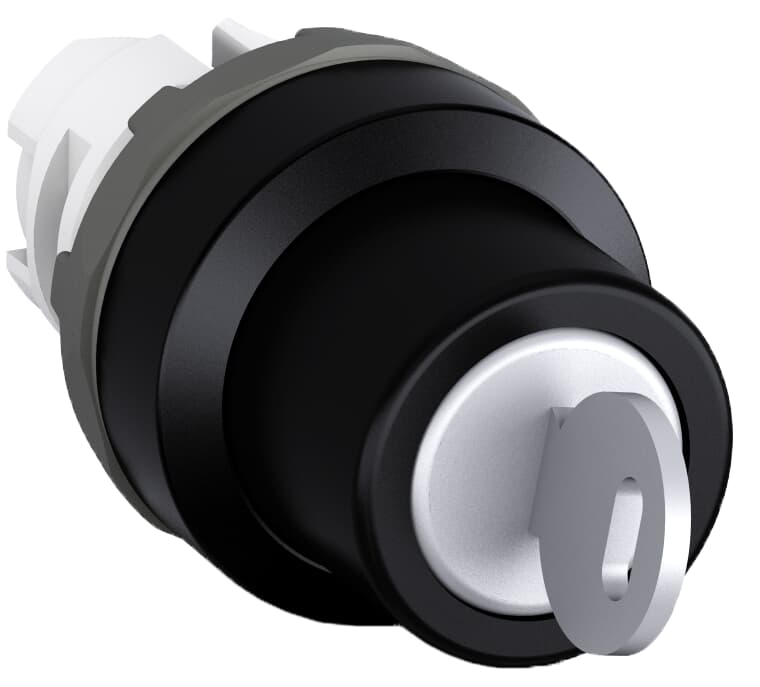

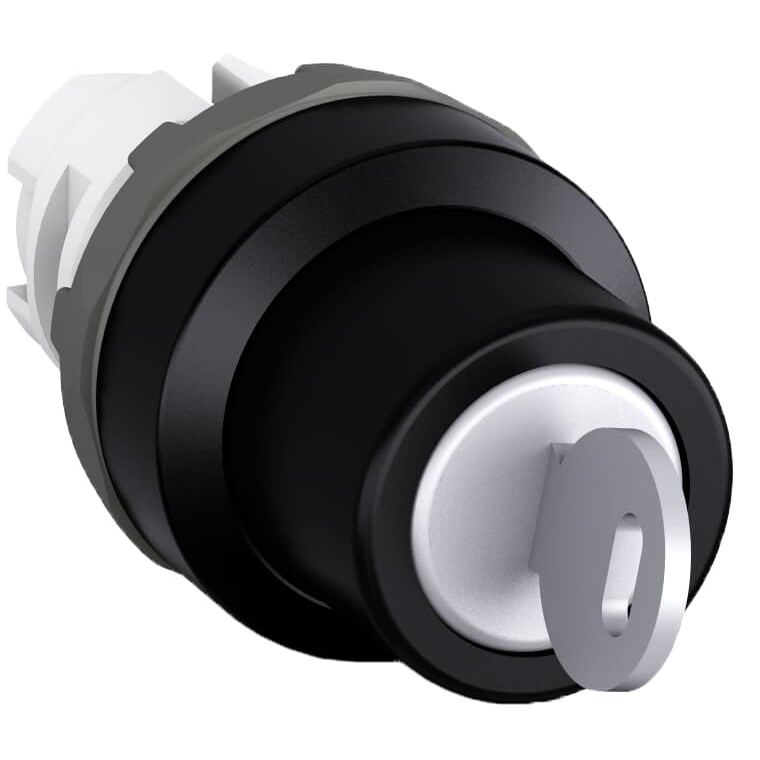

ABB M3SSK1-101 Selector Switch Black 3Position Non-Illuminated Maintained Key Plastic 30mm W

Product Code: M3SSK1-101

  • Non-illuminated black selector switch
  • Durable plastic construction
  • IP66 protection rating
  • Operates from -25 to 70°C
  • NEMA ratings: 1, 12, 13, 3R, 4, 4X
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 30W x 30H x 63D
Operational Temperature Range (°C) -25 to 70
Weight (kg) 0.045
Key Ronis 455, Key Code 71
Key Removal / Retained Positions A, B, C
Storage Temperature Range (°C) -40 to 85
Enclosure Type (NEMA) Type1, Type12, Type13, Type3R, Type4, Type4X
Maintained Positions A, B, C
Product Type Selector Switch
Brand ABB
Actuator Type Key
Bezel Material Plastic
Colour Black
Degree of Protection IP66
Depth 63 mm
Function Maintained
Height 30 mm
Illumination Non-Illuminated
Maintained Position A, B, C
Material Plastic
Mode of Operation Maintained 3-Position Selector Switch
NEMA Rating NEMA 1, 12, 13, 3R, 4, 4X
Number of Positions 3
Operational Temperature -25 to 70 deg C
Standards and Approvals IEC/EN 60073, IEC/EN 60529, IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60947-5-5
Storage Temperature -40 to 85 deg C
Weight 0.045 kg
Width 30 mm

Description

The M3SSK1-101 Selector Switch is: 3-position - Key - Black/Key - Non-illuminated - Black Plastic - No contact block. This Selector Switch is part of ABB's modular plastic range, the most versatile range with a high level of flexibility and market-leading electrical ratings. Engineered for total reliability, longer lifetime, and highest mechanical durability. Self-cleaning contacts ensure reliable operation without the need for maintenance, increasing uptime. A high degree of protection guarantees reliability in extreme environments. The innovative design simplifies the entire process, from selection to easy and quick, tool-free installation. The perfect solution for every application.

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
