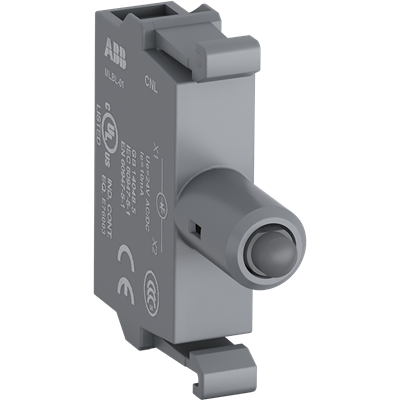

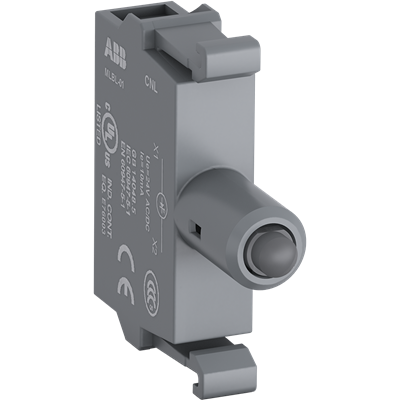

ABB MLBL-08L LED Block Blue 380VAC/DC Front Mount Illuminated IP20 For Modular Plastic Contactors

Product Code: MLBL-08L

  • 380 VAC/VDC rated, 50/60 Hz compatible
  • Compact size: 10 mm W x 44 mm H x 42 mm D
  • IP20 protection with screw terminals
  • Front mounting for modular plastic contactors
  • Built-in blue LED illumination
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 10W X 44H X 42D
Power Loss (W) Approximately 3.8
Rated Frequency (Hz) 50/60
Rated Voltage AC/DC (V) 380
Tightening Torque (Nm) 0.9
Suitable For Modular Plastic
Product Type LED Block
Brand ABB
Degree of Protection IP20
Depth 42 mm
Height 44 mm
Illumination Illuminated
Lamp Type Built-In LED
LED Colour Blue
Mounting Type Front
Power Loss 3.8 W
Rated Frequency 50/60 Hz
Rated Voltage 380 VAC/VDC
Suitable For Use With Modular Plastic Contactors
Terminal Type Screw
Tightening Torque 1 N-m
Width 10 mm

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
