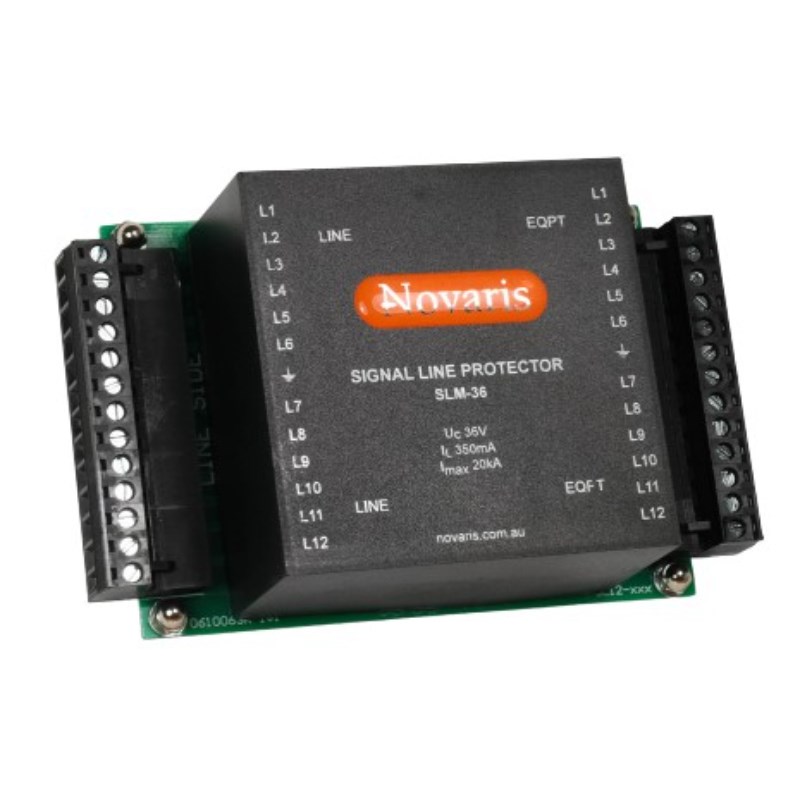

Novaris SLM-36 Multiline Signal Line Protector 20kA 34VDC Panel Mount 128mm W 42mm D 80mm H IP20

Product Code: SLM-36

  • Protects up to 12 signal lines
  • Rated for 34 VDC and 20 kA current
  • Operates in -40 to 85°C temperature range
  • IP20 protection for panel mounting
  • Complies with IEC, ITU-T, AS/NZS standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 80H x 128W x 42D
Maximum Continuous Operating Voltage MCOV AC (V) 24
Maximum Continuous Operating Voltage MCOV DC (V) 34
Maximum Discharge Current (8/20µs) - Imax (kA) 20
Operational Temperature Range (°C) -40 to 85
No. of Lines 12
Maximum Load Current - I? (A) 0.35
Product Type Multiline Signal Line Protector
Brand NOVARIS
Series SLM
Connection Type Series
Degree of Protection IP20
Depth 42 mm
Height 80 mm
Humidity 5-95%
Modes of Protection Transverse and Common Modes
Mounting Type Panel
Number of Lines 12
Operational Temperature -40 to 85 deg C
Rated Current 20 kA
Rated Voltage 34 VDC
Resistance 8.2 Ohm
Standards and Approvals IEC61643-21, ITU-T K.44, AS/NZS 1768, IEEE C62.41, UL497B
Tightening Torque 0.5 N-m
Weight 250 g
Width 128 mm

Description

The Multiline Signal Line Protector is designed to protect up to 12 lines. It has a maximum continuous voltage of 34VDC and 24VAC. The device can handle a maximum discharge current of 20 kA at 8/20ms. The maximum load current is 350 mA. With a voltage protection level of 40kA at 1 kV/ms (L-PE, L-L), it offers reliable protection for process control, telemetry, PLC, and irrigation systems. This protector is panel mountable and has an IP20 rating.

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
