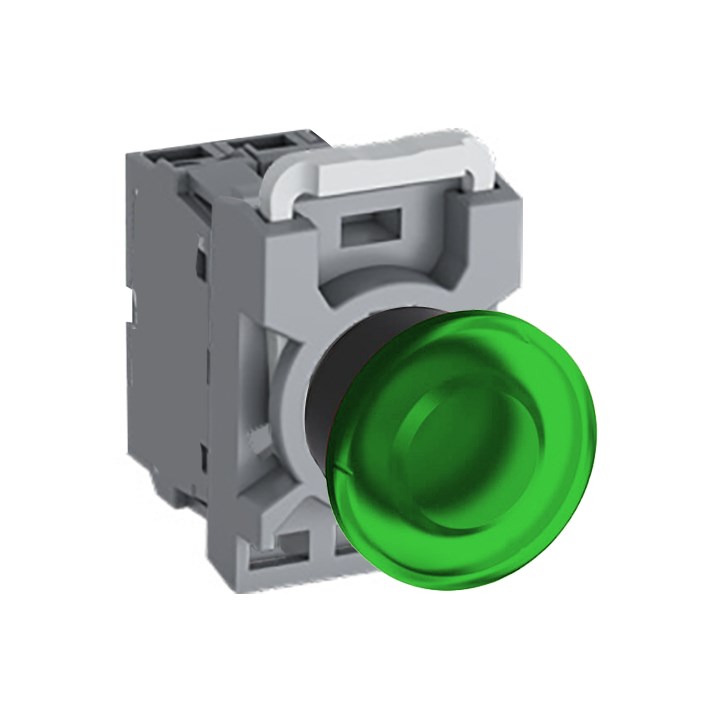

ABB MPMI4G210 Illuminated Pushbutton Kit 40mm Momentary Green 110-130VAC/DC 1NO

Product Code: MPMI4G210

  • Illuminated green LED for clear visibility
  • IP66 front protection against dust/water
  • Operates in -25 to 70°C environments
  • Complies with multiple international standards
  • Includes operator, contact block & LED block
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 1NO
Rated Voltage AC (V) 110 - 130
LED Block Rated Voltage 110-130 VAC
Bezel Material Plastic
Product Type Pushbutton Kit
Brand ABB
Actuator Type Mushroom 40mm
Bezel Material Plastic
Colour Green
Contact Configuration 1NO
Cutout Size 40 mm
Degree of Protection IP66 Front, IP20 Terminal
Diameter 40 mm
Function Momentary
Illumination Illuminated
Includes Operator, Contact Block, Contact Block Holder and LED Block
Lamp Colour Green
Lamp Type LED
LED Colour Green
Mode of Operation Momentary
Operational Temperature -25 to 70 deg C
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 110-130 VAC/DC
Standards and Approvals EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14

Description

This illuminated mushroom pushbutton kit features a green 40mm diameter button. It is a momentary switch with an integrated green LED. The kit operates on 110-130 VAC and has a 1NO contact configuration. It is part of a modular plastic range and has an IP66 rating for the front and an IP20 rating for the terminals.
