Product Code: MPMI4G310

Illuminated LED with green lamp for clear visibility
IP66 front protection ensures durability in harsh conditions
Operates efficiently from -25 to 70°C
Complies with multiple international standards
Momentary function with a 1NO contact configuration

Specifications

Contacts	1NO
Rated Voltage DC (V)	220
LED Block Rated Voltage	220 VDC
Bezel Material	Plastic
Product Type	Pushbutton Kit
Brand	ABB
Actuator Type	Mushroom 40mm
Bezel Material	Plastic
Colour	Green
Contact Configuration	1NO
Cutout Size	40 mm
Degree of Protection	IP66 Front, IP20 Terminal
Diameter	40 mm
Function	Momentary
Illumination	Illuminated
Includes	Operator, Contact Block, Contact Block Holder and LED Block
Lamp Colour	Green
Lamp Type	LED
LED Colour	Green
Mode of Operation	Momentary
Operational Temperature	-25 to 70 deg C
Rated Impulse Withstand Voltage	6 kV
Rated Insulation Voltage	690 V
Rated Thermal Current	10 A
Rated Voltage	220 VDC
Standards and Approvals	EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14

Description

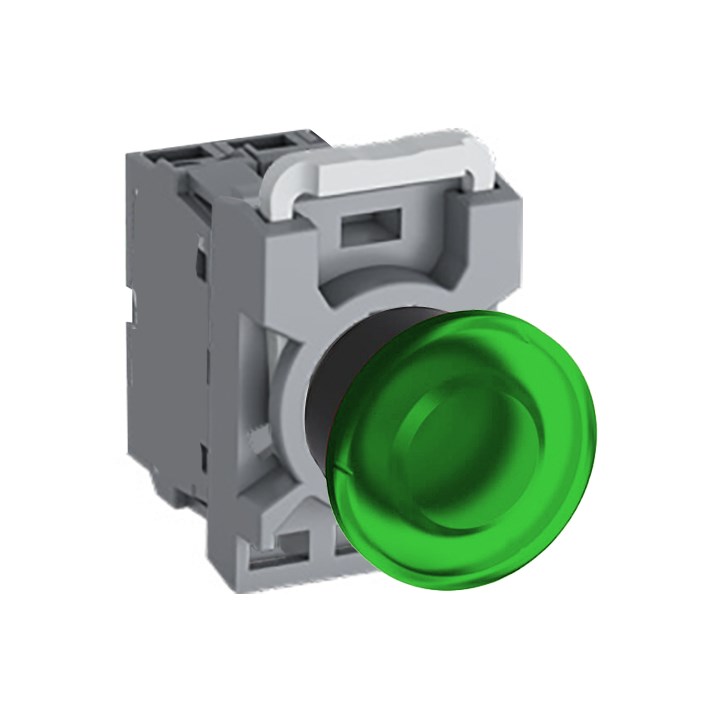

This illuminated mushroom pushbutton kit features a green 40mm diameter button. It is a momentary switch with an integrated green LED. The kit operates at 220 VDC and has a 1NO contact configuration. It belongs to a modular plastic range and has an IP66 front rating for protection against dust and water, while the terminals have an IP20 rating.
