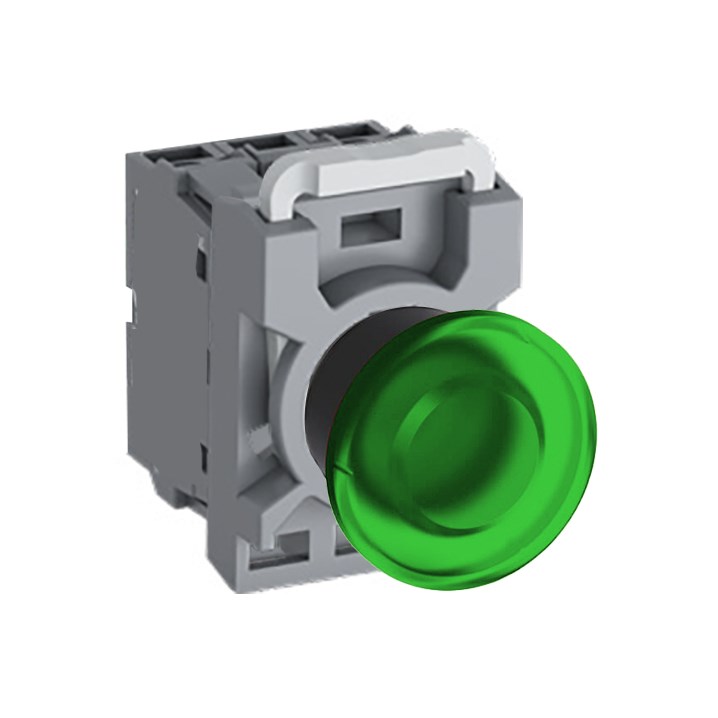

ABB MPMI4G411 Illuminated Pushbutton Kit 40mm Momentary Green 230VAC/DC 1NO+1NC

Product Code: MPMI4G411

  • 230V AC/DC illuminated momentary switch
  • IP66 front protection, IP20 terminal
  • Green LED with plastic bezel
  • Operates in -25 to 70°C range
  • Includes operator and contact block
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 1NO + 1NC
LED Block Rated Voltage 230 VAC
Bezel Material Plastic
Product Type Pushbutton Kit
Brand ABB
Actuator Type Mushroom 40mm
Bezel Material Plastic
Colour Green
Contact Configuration 1NO+1NC
Cutout Size 40 mm
Degree of Protection IP66 Front, IP20 Terminal
Diameter 40 mm
Function Momentary
Illumination Illuminated
Includes Operator, Contact Block, Contact Block Holder and LED Block
Lamp Colour Green
Lamp Type LED
Operational Temperature -25 to 70 deg C
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 230 VAC/DC
Standards and Approvals EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14
