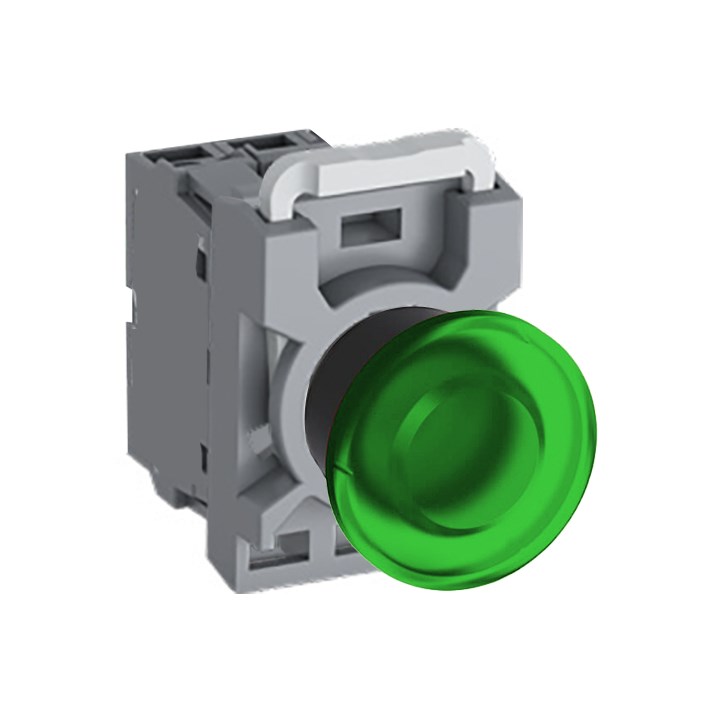

ABB MPMI4G110 Illuminated Pushbutton Kit 40mm Momentary Green 24VAC/DC 1NO

Product Code: MPMI4G110

  • 24 VAC/DC illuminated pushbutton
  • IP66 front protection rating
  • Green LED for clear visibility
  • Operates in -25 to 70°C range
  • Includes operator and contact block
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 1NO
Mushroom Diameter (mm) 40
Rated Frequency (Hz) 50/60
Rated Voltage AC/DC (V) 24
LED Block Rated Voltage 24VAC/DC
Bezel Material Plastic
Product Type Pushbutton Kit
Brand ABB
Actuator Type Mushroom 40mm
Bezel Material Plastic
Colour Green
Contact Configuration 1NO
Cutout Size 40 mm
Degree of Protection IP66 Front, IP20 Terminal
Diameter 40 mm
Function Momentary
Illumination Illuminated
Includes Operator, Contact Block, Contact Block Holder and LED Block
Lamp Colour Green
Lamp Type LED
LED Colour Green
Operational Temperature -25 to 70 deg C
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 24 VAC/DC
Standards and Approvals EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14

Description

This Illuminated Green Pushbutton is designed for engineers seeking a 40mm diameter switch with a 1NO contact. The kit includes the operator, contact blocks, and contact block holder from our Modular plastic range. It operates on 24VAC/DC power.
