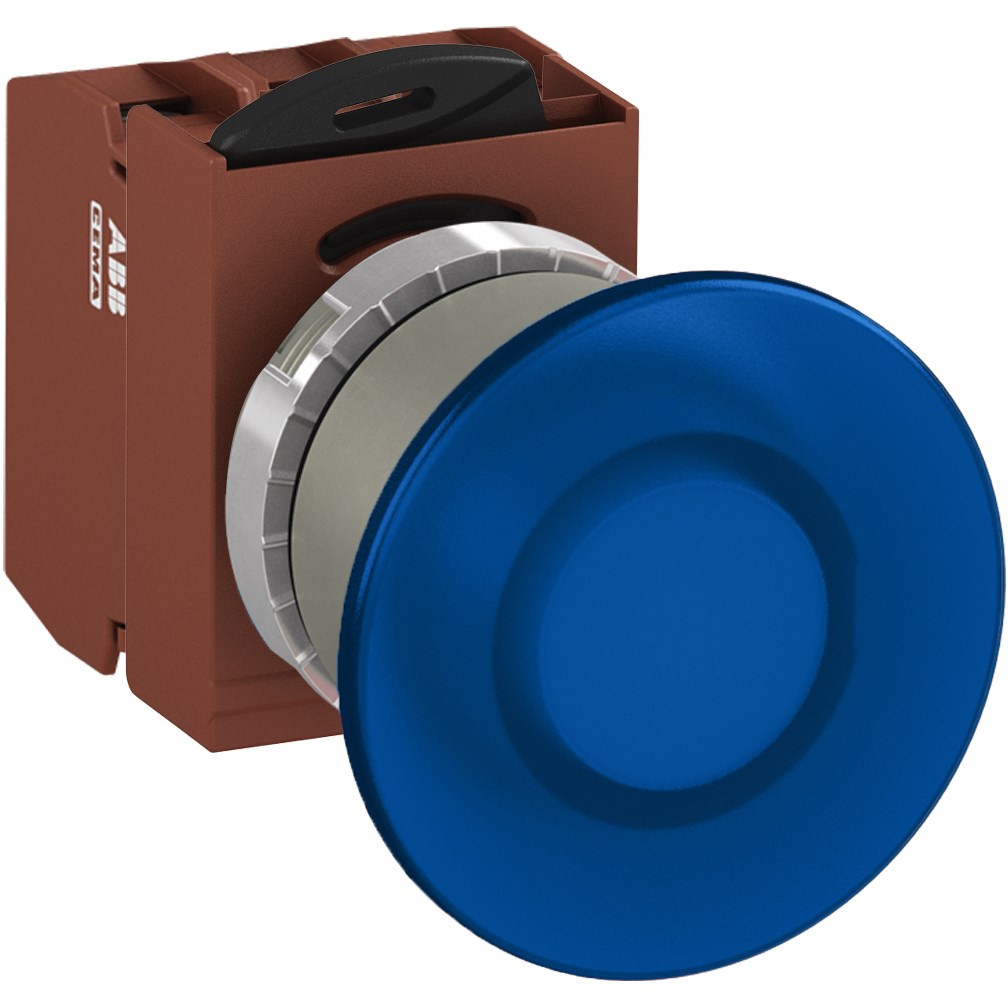

ABB MMMIL4ASP320 Illuminated Pushbutton Kit 40mm Mushroom Maintained Blue 110VAC/DC 2NO Screw Power Supply

Product Code: MMMIL4ASP320

  • Suitable for mining, construction & heavy industry
  • IP66 protection against dust and water
  • Operates in -30 to 70°C temperature range
  • Features a 40 mm blue mushroom actuator
  • Conforms to multiple international standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 2NO
LED Block Rated Voltage 110 VAC
Bezel Material Metal
Product Type Pushbutton Kit
Brand ABB
Actuator Type Mushroom
Ambient Temperature -30 to 70 deg C
Application For mining, construction and heavy industry applications
Bezel Material Metal
Colour Blue
Connection Type Screw
Contact Configuration 2NO
Cutout Size 40 mm
Degree of Protection IP66
Diameter 40 mm
Function Maintained
Illumination Illuminated
Includes Operator, Contact Block, Maintained Accessories, Power Supply (Lamp Block) and Lamp
Lamp Colour Blue
Lamp Type BA9S
Light Blocks Type Power Supply
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 110 VAC/DC
Standards and Approvals EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, UL 508, CSA C22.2 No. 14
