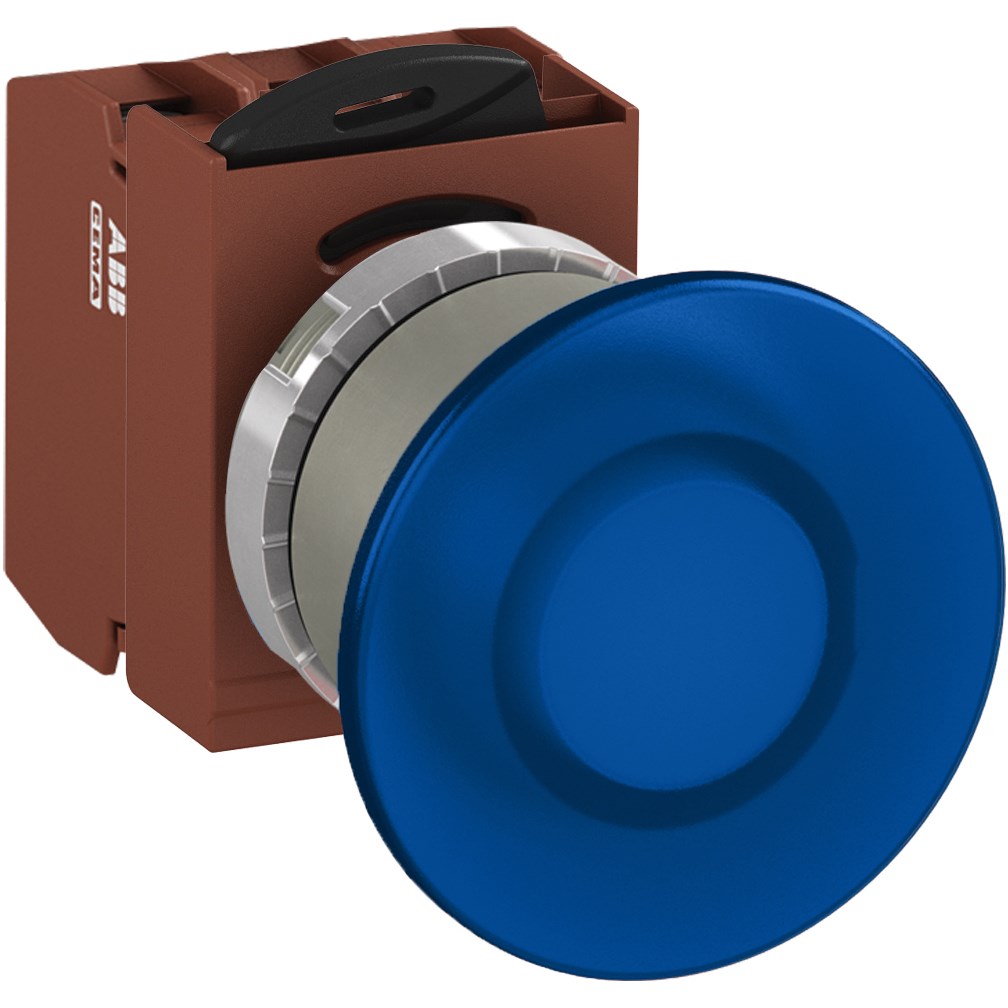

ABB MMMIL4ASP120 Illuminated Pushbutton Kit 40mm Mushroom Maintained Blue 12VAC/DC 2NO Screw Power Supply

Product Code: MMMIL4ASP120

  • 12 VAC/DC illuminated mushroom actuator
  • IP66 protection for harsh environments
  • Operates in -30 to 70°C temperature range
  • Screw connection with 2NO contact configuration
  • Suitable for mining, construction, heavy industry
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 2NO
LED Block Rated Voltage 12 VAC/DC
Bezel Material Metal
Product Type Pushbutton Kit
Brand ABB
Actuator Type Mushroom
Ambient Temperature -30 to 70 deg C
Application For mining, construction and heavy industry applications
Bezel Material Metal
Colour Blue
Connection Type Screw
Contact Configuration 2NO
Cutout Size 40 mm
Degree of Protection IP66
Diameter 40 mm
Function Maintained
Illumination Illuminated
Includes Operator, Contact Block, Maintained Accessories, Power Supply (Lamp Block) and Lamp
Lamp Colour Blue
Lamp Type BA9S
Light Blocks Type Power Supply
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 12 VAC/DC
Standards and Approvals EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, UL 508, CSA C22.2 No. 14
