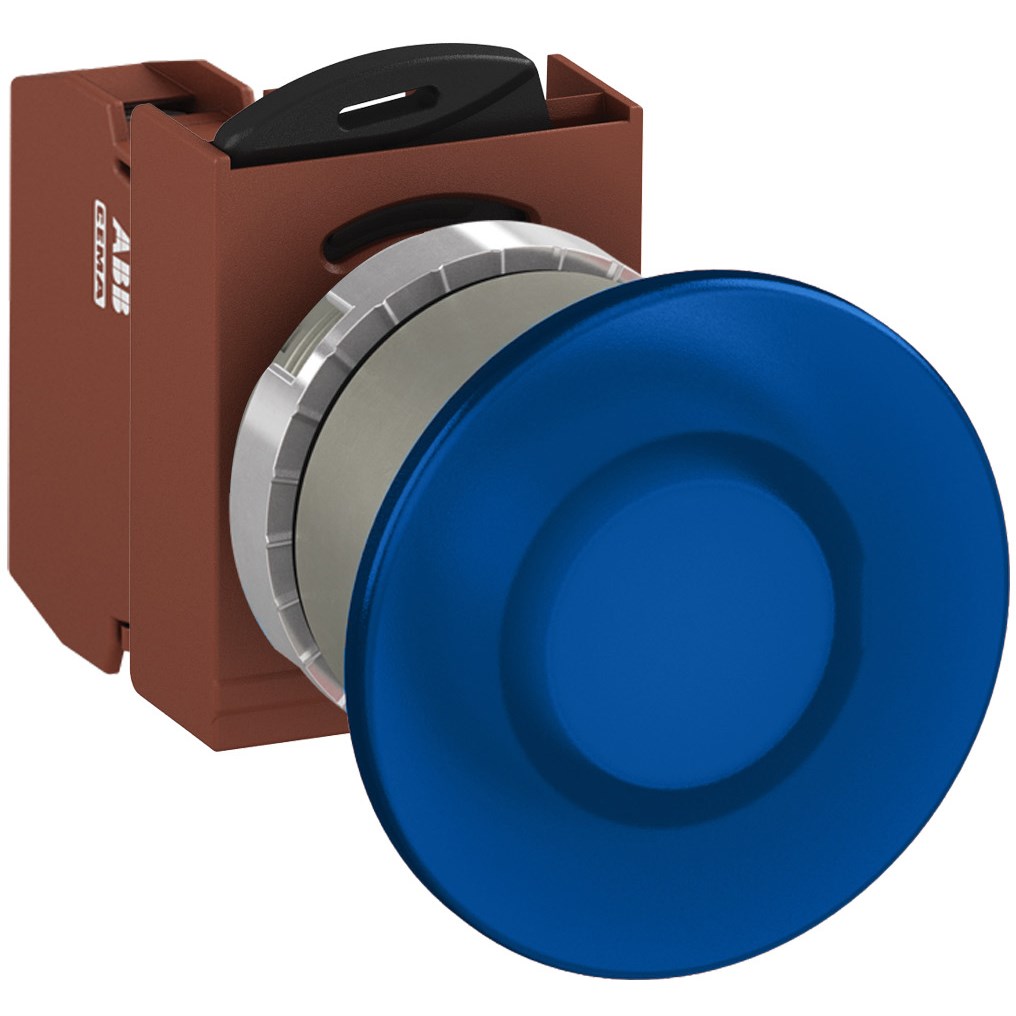

ABB MMMIL4AFP210 Illuminated Pushbutton Kit 40mm Mushroom Maintained Blue 24VAC/DC 1NO Faston Power Supply

Product Code: MMMIL4AFP210

  • Operates at 24 VAC/DC, illuminated for visibility
  • IP66 rated for robust protection in harsh environments
  • Supports faston connections for easy setup
  • Maintained function with mushroom actuator design
  • Suitable for mining and heavy industry applications
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 1NO
LED Block Rated Voltage 24 VAC/DC
Bezel Material Metal
Product Type Pushbutton Kit
Brand ABB
Actuator Type Mushroom
Ambient Temperature -30 to 70 deg C
Application For mining, construction and heavy industry applications
Bezel Material Metal
Colour Blue
Connection Type Faston
Contact Configuration 1NO
Cutout Size 40 mm
Degree of Protection IP66
Diameter 40 mm
Function Maintained
Illumination Illuminated
Includes Operator, Contact Block, Maintained Accessories, Power Supply (Lamp Block) and Lamp
Lamp Colour Blue
Lamp Type BA9S
Light Blocks Type Power Supply
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 24 VAC/DC
Standards and Approvals EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, UL 508, CSA C22.2 No. 14

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
