Specifications

Contacts	1NO
LED Block Rated Voltage	110 VAC
Bezel Material	Metal

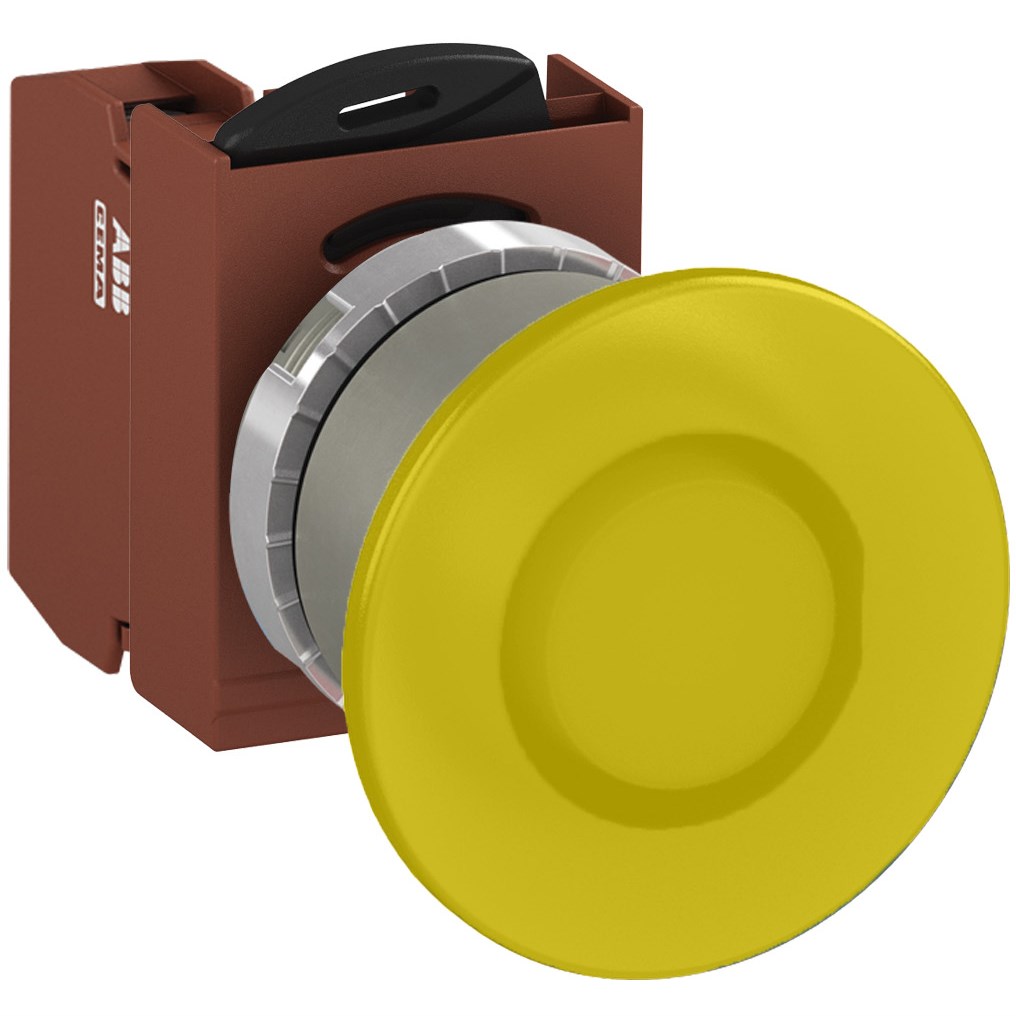

Product Type	Pushbutton Kit
Brand	ABB
Actuator Type	Mushroom
Ambient Temperature	-30 to 70 deg C
Application	For mining, construction and heavy industry applications
Bezel Material	Metal
Colour	Yellow
Connection Type	Screw
Contact Configuration	1NO
Cutout Size	40 mm
Degree of Protection	IP66
Diameter	40 mm
Function	Maintained
Illumination	Illuminated
Includes	Operator, Contact Block, Maintained Accessories, Power Supply (Lamp Block) and Lamp
Lamp Colour	Yellow
Lamp Type	BA9S
Light Blocks Type	Power Supply
Rated Impulse Withstand Voltage	4 kV
Rated Insulation Voltage	690 V
Rated Thermal Current	10 A
Rated Voltage	110 VAC/DC
Standards and Approvals	EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, UL 508, CSA C22.2 No. 14
